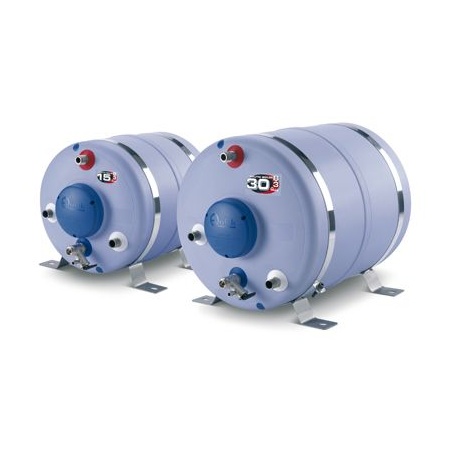

Waterheaters - QUICK - Nautic Boiler B3
Casing in composite material, Tank in stainless steel AISI316
Tank mounting brackets for wall or floor-mounting are in stainless steel AISI 316 and are supplied as standard in each package.
Tank mounting brackets for wall or floor-mounting are in stainless steel AISI 316 and are supplied as standard in each package.

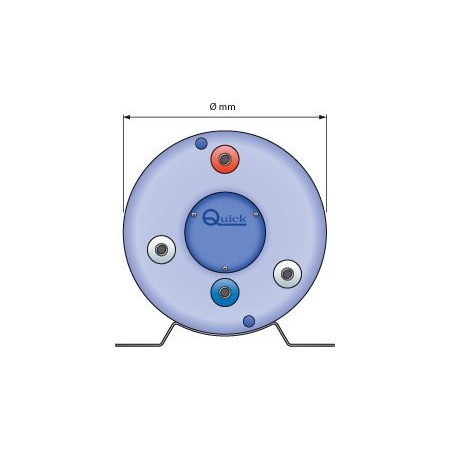

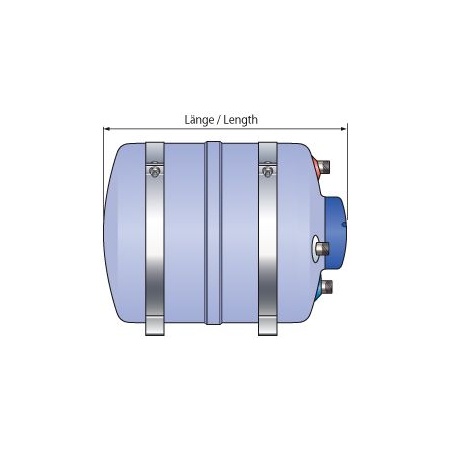

| Art.-No. 500 W | Art.-No. 1200 W | Liter | Ø | length | weight | voltage |
| 15 l | 300 mm | 405 mm | 7,0 kg | 220 V | ||
| 20 l | 300 mm | 500 mm | 8,1 kg | 220 V | ||
| 25 l | 300 mm | 605 mm | 8,5 kg | 220 V | ||
| 30 l | 360 mm | 495 mm | 10,5 kg | 220 V | ||
| 40 l | 360 mm | 620 mm | 11,7 kg | 220 V | ||
| 60 l | 400 mm | 721 mm | 14,6 kg | 220 V | ||
| - | 80 l | 400 mm | 921 mm | 17,8 kg | 220 V |
| NAUTIC BOILER B3 | |
| Tank pressure (running test) | 800 kPa *) |
| max. working pressure | 600 kPa *) |
| Voltage rating | 220 V ± 10 % |
| Output Ø | 1/2" |
*) kPa means KiloPascal
1 kPa = 1000 Pa
1 kPa = 0,1 N / cm2
100 kPa = 1 Bar
1 kPa = 1000 Pa
1 kPa = 0,1 N / cm2
100 kPa = 1 Bar
Short URL: http://lindemann.kg/s/8/Q6y
All article numbers marked in blue can be ordered.
All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
