hose nipples - back nuts - hose nipples - Brass streight

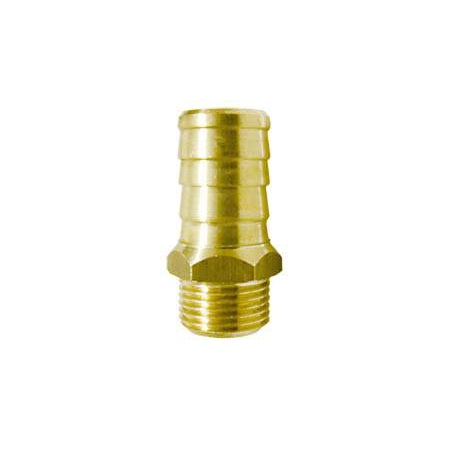

Typ A
mit Außengewinde

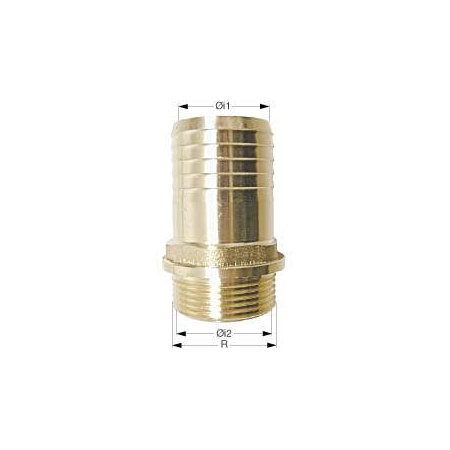

Typ B
mit Außengewinde
with outside thread, brass 58
| Art.-No. | Typ | R Zoll | R ca. mm | Øi2 mm | Øi1 mm | for hose inside Ø |
| A | 1/4" | |||||
| A | 3/8" | 16,6 | 11,8 | 6,5 | 3/8" = 9mm | |
| A | 3/8" | 16,6 | 11,8 | 9,8 | 1/2" = 13mm | |
| A | 3/8" | 16,6 | 11 | 11 | 5/8" = 16mm | |
| A | 1/2" | 20,9 | 15,2 | 11 | 1/2" = 13mm | |
| B | 1/2" | 20,9 | 15,2 | 15 | 3/4" = 19mm | |
| B | 3/4" | 26,2 | 20,4 | 15,5 | 3/4" = 19mm | |
| B | 3/4" | 26,2 | 20,3 | 20,3 | 1" = 25mm | |
| B | 1" | 33,3 | 27 | 20 | 1" = 25mm | |
| B | 1" | 33,3 | 28 | 24,5 | 1 1/4" = 32mm | |
| B | 1 1/4" | 41,8 | 35 | 25 | 1 1/4" = 32mm | |
| B | 1 1/4" | 41,8 | 35 | 33,7 | 40mm | |
| B | 1 1/2" | 48 | 41,5 | 36 | 1 1/2" = 38mm | |
| B | 1 1/2" | 48 | 39 | 43,5 | 2" = 50mm | |
| B | 2" | 59,4 | 50,6 | 44,6 | 2" = 50mm |
Short URL: http://lindemann.kg/s/8/VM4
All article numbers marked in blue can be ordered.
All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
