hose clips - DIN3017A

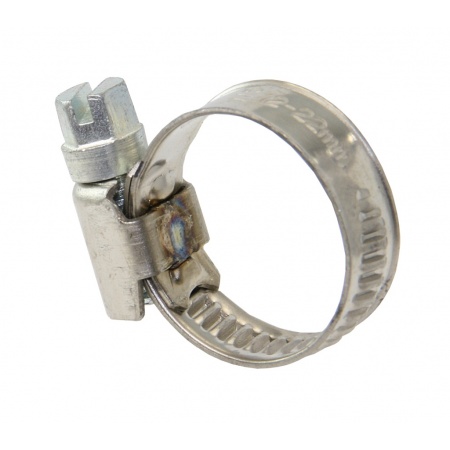

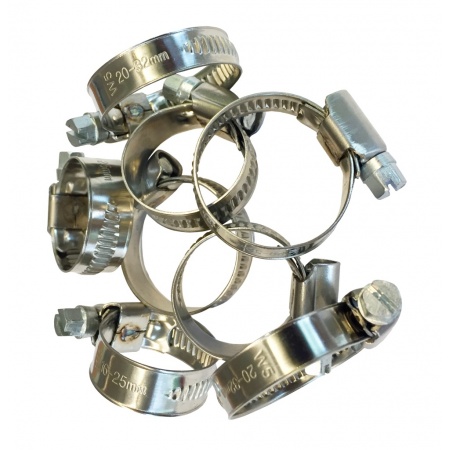

Hose clips in stainless steel A4 AISI316(W5) according to DIN 3017 type A
| Art.-No. VP à 10 | Art.-No. VP à 100 | approx. Ø range mm | band width mm | Tightening torque |
| 10 - 16 mm | 9 mm | ca. 3 + 0,5 Nm | ||
| 12 - 20 mm | 9 mm | ca. 3 + 0,5 Nm | ||
| 16 - 27 mm | 9 mm | ca. 3 + 0,5 Nm | ||
| 20 - 32 mm | 9 mm | ca. 3 + 0,5 Nm | ||
| 25 - 40 mm | 9 mm | ca. 3 + 0,5 Nm | ||
| - | 32 - 50 mm | 9 mm | ca. 3 + 0,5 Nm | |
| Art.-No. VP à 10 | Art.-No. VP à 50 | approx. Ø range mm | band width mm | Tightening torque |
| 30 - 45 mm | 9 mm | ca. 3 + 0,5 Nm | ||
| 35 - 50 mm | 9 mm | ca. 3 + 0,5 Nm | ||
| 40 - 60 mm | 9 mm | ca. 3 + 0,5 Nm | ||
| Art.-No. VP à 10 | Art.-No. VP à 25 | approx. Ø range mm | band width mm | Tightening torque |
| 50 - 70 mm | 9 mm | ca. 3 + 0,5 Nm |
| Art.-No. VP à 10 | Art.-No. VP à 100 | approx. Ø range mm | band width mm | Tightening torque |
| 16 - 25 mm | 12 mm | ca. 5 + 0,5 Nm | ||
| 20 - 32 mm | 12 mm | ca. 5 + 0,5 Nm | ||
| 25 - 40 mm | 12 mm | ca. 5 + 0,5 Nm | ||
| Art.-No. VP à 10 | Art.-No. VP à 50 | approx. Ø range mm | band width mm | Tightening torque |
| 30 - 45 mm | 12 mm | ca. 5 + 0,5 Nm | ||
| 35 - 50 mm | 12 mm | ca. 5 + 0,5 Nm | ||
| 40 - 60 mm | 12 mm | ca. 5 + 0,5 Nm | ||
| Art.-No. VP à 10 | Art.-No. VP à 25 | approx. Ø range mm | band width mm | Tightening torque |
| 50 - 70 mm | 12 mm | ca. 5 + 0,5 Nm | ||
| 60 - 80 mm | 12 mm | ca. 5 + 0,5 Nm | ||
| 70 - 90 mm | 12 mm | ca. 5 + 0,5 Nm | ||
| 80 - 100 mm | 12 mm | ca. 5 + 0,5 Nm | ||
| 90 - 110 mm | 12 mm | ca. 5 + 0,5 Nm | ||
| 100 - 120 mm | 12 mm | ca. 5 + 0,5 Nm | ||
| 110 - 130 mm | 12 mm | ca. 5 + 0,5 Nm | ||
| 120 - 140 mm | 12 mm | ca. 5 + 0,5 Nm |
Short URL: http://lindemann.kg/s/8/Ure
All article numbers marked in blue can be ordered.
All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
