skin fitting - Acetal

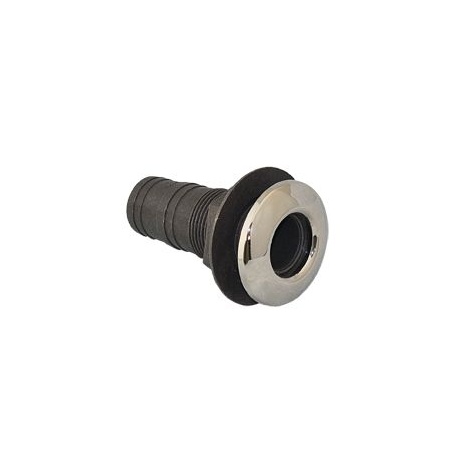

Acetal with electro polished cover in stainless steel
| Art.-No. | for hose inside Ø | Øa mm | hull thickness | Ø cut out mm | |
| 5/8" | 16mm | 1 1/4" = 32 mm | |||
| 3/4" | 19mm | 51,5 mm | 1 1/4" = 32 mm | 33,0 mm | |
| 1" | 25mm | 51,5 mm | 1 1/4" = 32 mm | 33,3 mm | |
| 1 1/8 - 1 1/4" | 28mm - 32mm | 57,5 mm | 1 1/4" = 32 mm | 34,4 mm | |
| 1 1/2" | 38mm | 76,5 mm | 1 7/8" = 47 mm | 56,9 mm | |
do not use below the water line

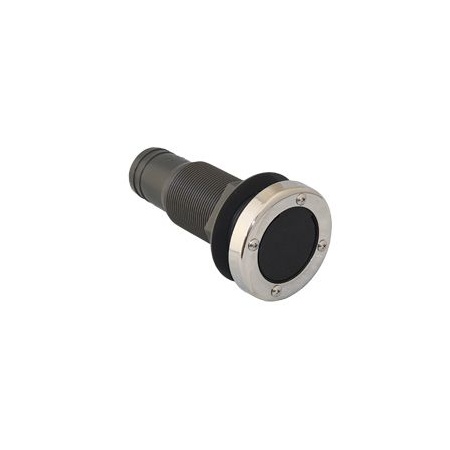

Acetal with electro polished cover in stainless steel and integrated rubber valve
| Art.-No. | for hose inside Ø | Øa mm | hull thickness | Ø cut out mm | |
| 1 1/2" | 38mm | 77,6 mm | 69,0 mm | 47,5 mm | |
Do not use below the water line

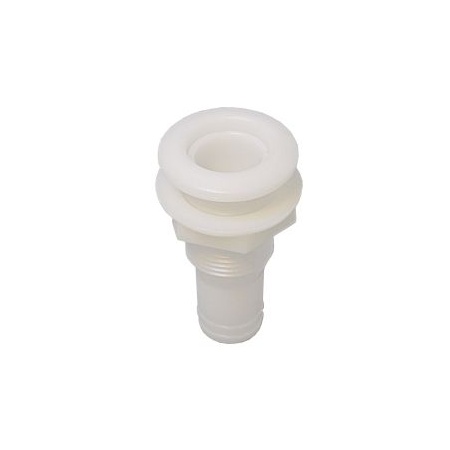

Acetal, white, straight
| Art.-No. | for hose-Ø | Øa mm | hull thickness | Ø cut out mm | |
| 1/2" | 13mm | 36,1 mm | 1 1/4" = 32mm | 21,0 mm | |
| 3/4" | 19mm | 48,5 mm | 1 1/4" = 32mm | 33,5 mm | |
| 1" | 25mm | 48,5 mm | 1 1/4" = 32mm | 33,5 mm | |
| 1 1/2" | 38mm | 73,0 mm | 1 7/8" = 47mm | 56,5 mm | |
do not use below the water line

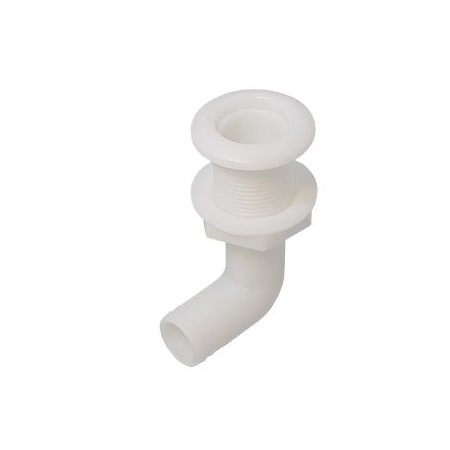

Acetal, white, hose connection 90°
| Art.-No. | for hose-Ø | Øa mm | hull thickness | Ø cut out mm | |
| 3/4" | 19 mm | 48,5 mm | 1 1/4" = 32mm | 32,8 mm | |
| 1" | 25 mm | 48,5 mm | 1 1/4" = 32mm | 32,8 mm | |
| 1 1/8" - 1 1/4" | 29 - 32 mm | 54,4 mm | 1 1/4" = 32mm | 34,5 mm | |
| 1 1/2" | 38 mm | 73,5 mm | 1 1/4" = 32mm | 56,5 mm | |
do not use below the water line
Short URL: http://lindemann.kg/s/8/QCR
All article numbers marked in blue can be ordered.
All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
