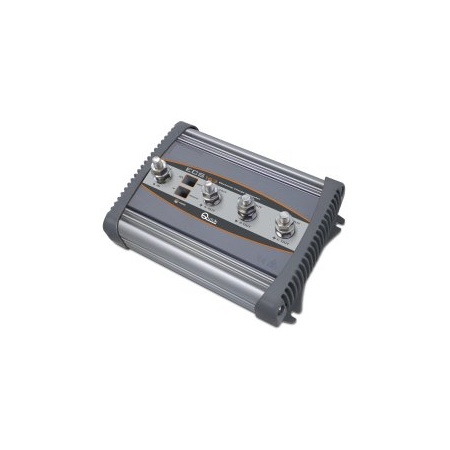

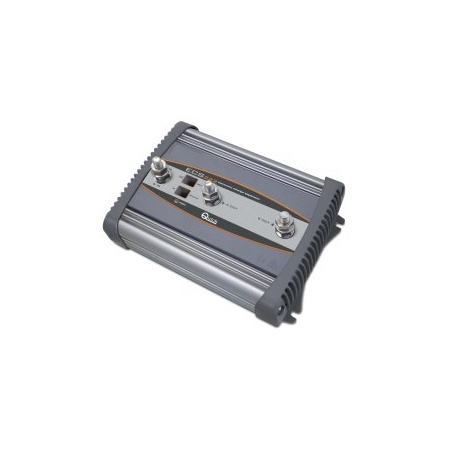

Charge Separator - QUICK
QIECS163
QIECS223
QIECS162
The charge separator allows to increase the number of possible connections to the batteries, individually preserving each one’s charge, as usually occurs with multiple output battery chargers. The Quick ECS charge separator has been built using MOSFET technology, which makes it possible to distribute the charge without harmful voltage drops, as occurs with the traditional diode system.
• Negligible current drop.
• Low power dissipation.
• Capable of operating in a wide range of ambient temperatures.
• Suitable for both 12 and 24V operation automatically.
• Easy installation and wiring thanks to the compactness of the unit.
• Negligible current drop.
• Low power dissipation.
• Capable of operating in a wide range of ambient temperatures.
• Suitable for both 12 and 24V operation automatically.
• Easy installation and wiring thanks to the compactness of the unit.
| Art.-No. | Max. current | Voltage | Out | In | Cooling | dimensions mm |
| 160 A | 5 - 31 V | 2 | 1 | passive | 195 x 68 x 135 mm | |
| 160 A | 5 - 31 V | 3 | 1 | passive | 195 x 68 x 135 mm | |
| 220 A | 5 - 31 V | 2 | 1 | passive | 195 x 68 x 135 mm | |
| 220 A | 5 - 31 V | 3 | 1 | passive | 195 x 68 x 135 mm |
The maximum efficiency that a charge separator can offer, with an energy saving 6 times greater than the one given by the other devices available on the market.
