battery switches and terminal - Battery switch BEP - Typ 771 Pro Installer
• Tested to UL1107 ignition protection, CE
• Tinned copper 10 mm (3/8") studs
• Stainless steel washers/nuts
• Fibre reinforced plastics
• 400 A - Countinous, 600 A - 5 min. Intermittend, 1500 A - 10 sec. Cranking
• Same interconnection height as Pro Installer
• Removable knob allows isolation during servicing.
• 3 removable side plates for protection
• Industry standard 3,85" x 3,85" (98 x 98 mm) footprint
• Tinned copper 10 mm (3/8") studs
• Stainless steel washers/nuts
• Fibre reinforced plastics
• 400 A - Countinous, 600 A - 5 min. Intermittend, 1500 A - 10 sec. Cranking
• Same interconnection height as Pro Installer
• Removable knob allows isolation during servicing.
• 3 removable side plates for protection
• Industry standard 3,85" x 3,85" (98 x 98 mm) footprint

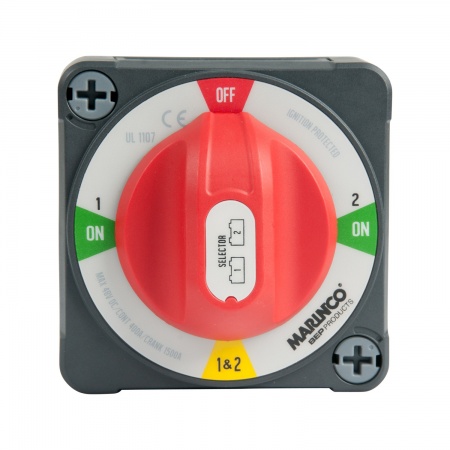

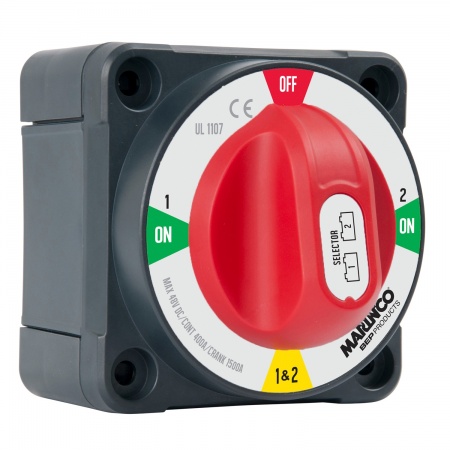

BEP Battery Select Switch 771
• Voltage 12 / 24 V (max 48 V)
• Connection 2x 10 mm (3/8")
• Height 92 mm

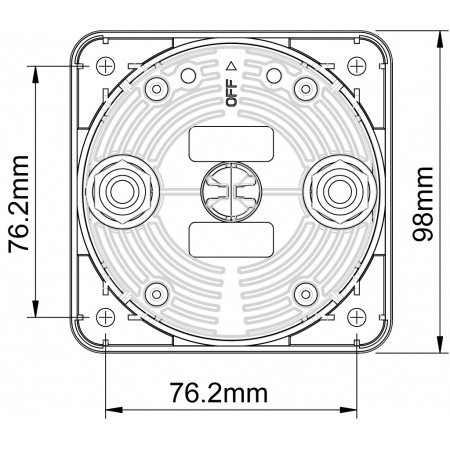

• Footprint 98 x 98 mm
• Voltage 12 / 24 V (max 48 V)
• Connection 2x 10 mm (3/8")
• Height 92 mm
• Footprint 98 x 98 mm
| Art.-No. SB Pack | Art.-No. unpacked | type | Operation | mounting |
| EZ-Mount | 1 / 2 / 1+2 / Off | Surface mount | ||
| Standard | 1 / 2 / 1+2 / Off | Surface mount Front and Rear panel mount | ||
| - | Standard | 1 / 2 / 1+2 / Off with Field Disconnect | Surface mount Front and Rear panel mount |
