battery switches and terminal - Battery switch BEP - Typ 701 Select Switch

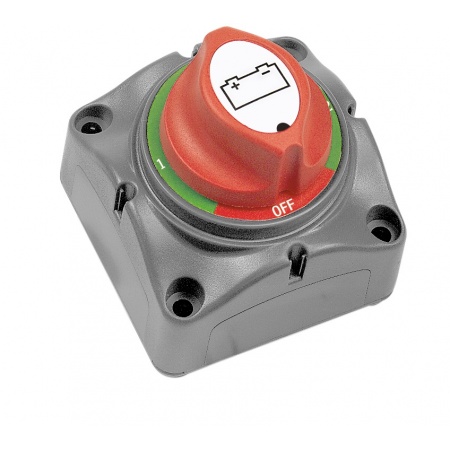

BP701S

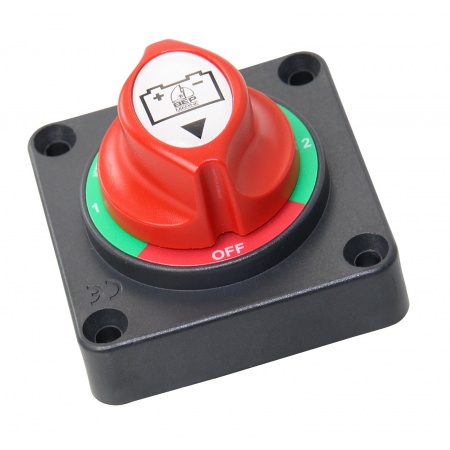

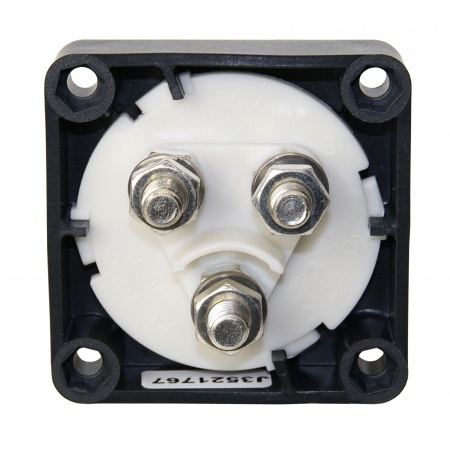

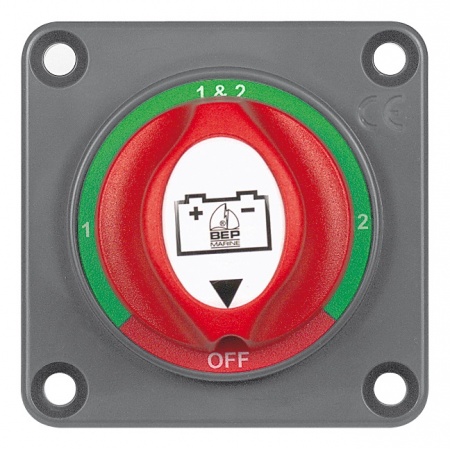

BP701S-PM

BEP Battery Select Switch 701

• Tinned copper 10 mm (3/8") studs
• Stainless steel washers/nuts
• Fibre reinforced plastics
• 3 removable side plates for protection
• Footprint 2,75" x 2,75" (69 x 69 mm)
• 275 A - Countinous, 455 A - 5 min. Intermittend, 1250 A - 10 sec. Cranking

Art.-No. SB Pack	Art.-No. unpacked	type	Operation	height mm	mounting
BP701S BEP Batteriewahlschalter 701S 12/24V 200A 3-polig Aufbau SB-Pack Price (EUR): € 85,50 per pc. on stock	BP701S-B BEP Batteriewahlschalter 701S 12/24V 200A 3-polig Aufbau Price (EUR): € 58,00 per pc. on stock	Standard	1 / 2 / 1+2 / Off	75 mm	Surface mount
BP701S-PM BEP Batteriewahlschalter 701S 12/24V 200A 3-polig Einbau SB-Pack Price (EUR): € 79,00 per pc. on stock	BP701S-B-PM BEP Batteriewahlschalter 701S 12/24V 200A 3-polig Einbau Price (EUR): € 77,50 per pc. on stock	Panel Mount	1 / 2 / 1+2 / Off	67 mm	Panel mount

Short URL: http://lindemann.kg/s/6/VJd

All article numbers marked in blue can be ordered.

All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
