battery switches and terminal - Battery switch BEP - Bus Bar Heavy Duty

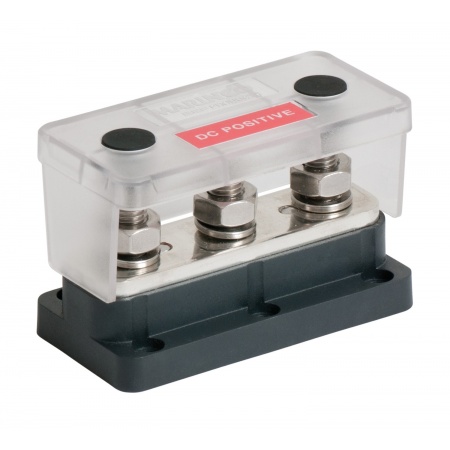

BP777-BB35

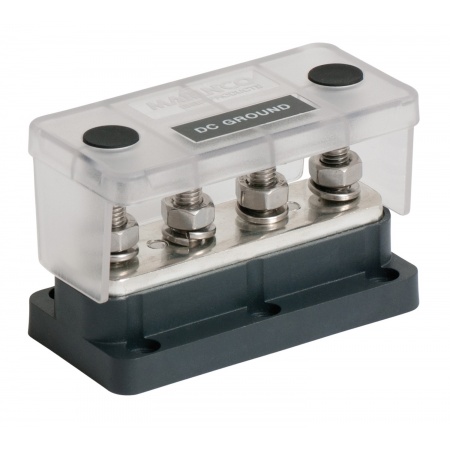

BP777-BB45

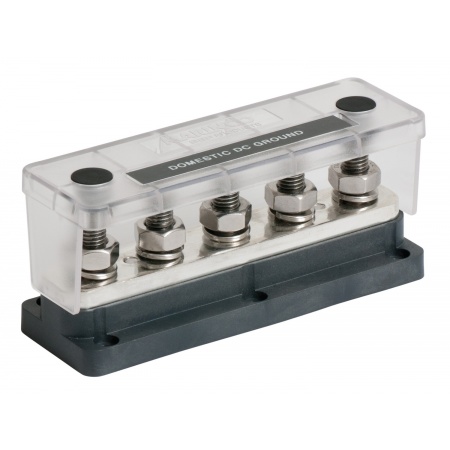

BP777-BB55

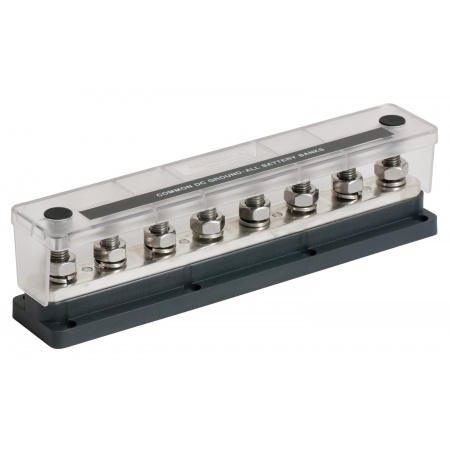

BP777-BB85
Robust BEP bus bar with long connectors for larger diameters. Tinned copper conductors. Studs, washer and nuts in stainless steel.
| Art.-No. SB Pack | Art.-No. unpacked | Ø Stud | gang | Footprint | Voltage V | current A |
| 10 mm | 3 | 98 x 49 mm | max 50 V | 650 A | ||
| 8 mm | 4 | 98 x 49 mm | max 50 V | 500 A | ||
| 10 mm | 5 | 147 x 49 mm | max 50 V | 650 A | ||
| 10 mm | 8 | 249 x 49 mm | max 50 V | 650 A |
Short URL: http://lindemann.kg/s/6/VJf
All article numbers marked in blue can be ordered.
All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
