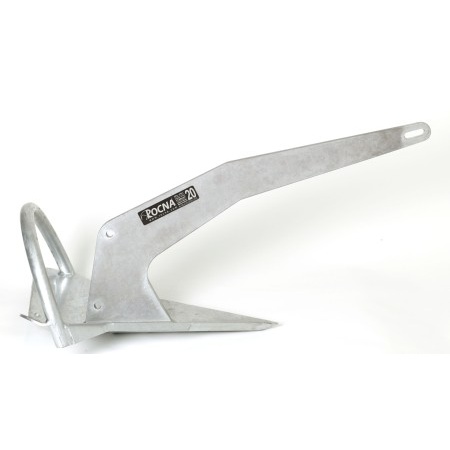

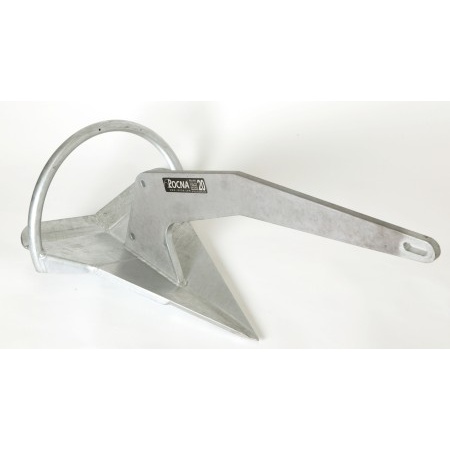

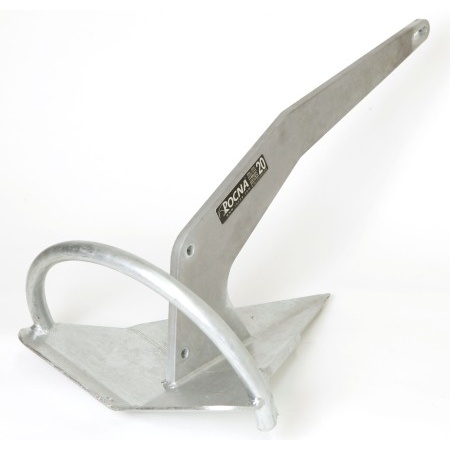

There´s a Rocna anchor to suit just about every vessel, with a range of sizes from 4 kg (9 lb) to 275 kg (606 lb), giving Rocna a line-up above all others.
Rocna´s design has no moving parts and is carefully designed for maximum physical durability for use in the most extreme enviroments. Each anchor uses only the finest quality steels and is individually hand built to provide a product second to none.
Visit the ROCNA homepage and read more product comparisons to other well known anchor types.
Rocna´s design has no moving parts and is carefully designed for maximum physical durability for use in the most extreme enviroments. Each anchor uses only the finest quality steels and is individually hand built to provide a product second to none.
Visit the ROCNA homepage and read more product comparisons to other well known anchor types.
| Art.-No. galvanized | Art.-No. stainless steel | weight | Blade area | A mm | B mm | C mm | D mm | E mm | F mm | S mm | width mm |
| 4,0 kg | 460 cm² | 547 | 234 | 154 | 133 | 96 | 103 | 75 | 275 | ||
| 6,0 kg | 590 cm² | 630 | 270 | 170 | 150 | 102 | 123 | 80 | 315 | ||
| 10,0 kg | 795 cm² | 724 | 312 | 204 | 174 | 130 | 133 | 90 | 365 | ||
| 15,0 kg | 1030 cm² | 830 | 360 | 235 | 205 | 145 | 156 | 100 | 415 | ||
| 20,0 kg | 1140 cm² | 864 | 373 | 244 | 220 | 162 | 158 | 110 | 435 | ||
| 25,0 kg | 1415 cm² | 971 | 420 | 275 | 233 | 175 | 184 | 115 | 485 | ||
| 33,0 kg | 1695 cm² | 1066 | 485 | 280 | 254 | 180 | 206 | 120 | 532 | ||
| 40,0 kg | 1945 cm² | 1142 | 520 | 300 | 278 | 188 | 224 | 130 | 570 | ||
| 55,0 kg | 2300 cm² | 1235 | 560 | 323 | 306 | 225 | 226 | 150 | 620 | ||
| - | 70,0 kg | 2690 cm² | 1338 | 607 | 354 | 330 | 240 | 250 | 155 | 670 |
RINA approval to Super High Holding Power (SHHP) and Sea Bed Testing Approval to SHHP certification for the galvanized Rocna anchors. RINA has approved galvanized Rocna anchors in sizes 4 kg to 110 kg.
To choose the right size for your Rocna anchor pick out the correct vessel length on the left side on the chart. As second step search for the weight of your yacht. If the correct size is not clear at all please choose the next bigger one. Please also consider the territory where to want to use the anchor. On Multihull yachts please always choose the next bigger size.
| RO004 | RO006 | RO010 | RO015 | RO020 | RO025 | RO033 | RO040 | RO055 | RO070 | RO110 | |
| 4m | <= 2 t | ||||||||||
| 5m | <= 1 t | <= 5 t | |||||||||
| 6m | <= 0,5 t | <= 3,5 t | |||||||||
| 7m | <= 0,5 t | <= 2 t | <= 7 t | ||||||||
| 8m | <= 1 t | <= 6 t | <= 12 t | ||||||||
| 9m | <= 0,5 t | <= 5 t | <= 10 t | <= 16 t | |||||||
| 10m | <= 4 t | <= 8,5 t | <= 14 t | <= 22 t | |||||||
| 11m | <= 3 t | <= 7 t | <= 12 t | <= 20 t | |||||||
| 12m | <= 6 t | <= 10 t | <= 18 t | <= 30 t | |||||||
| 14m | <= 4 t | <= 6 t | <= 13 t | <= 23 t | <= 40 t | ||||||
| 16m | <= 3 t | <= 9 t | <= 18 t | <= 32 t | <= 60 t | ||||||
| 18m | <= 5 t | <= 14 t | <= 25 t | <= 50 t | <= 85 t | ||||||
| 20m | <= 10 t | <= 18 t | <= 40 t | <= 75 t | <= 165 t | ||||||
| 22m | <= 6 t | <= 12 t | <= 33 t | <= 65 t | <= 150 t | ||||||
| 24m | <= 7 t | <= 25 t | <= 55 t | <= 135 t | |||||||
| 26m | <= 18 t | <= 45 t | <= 120 t | ||||||||
| 28m | <= 35 t | <= 105 t | |||||||||
| weight | 4 kg 9lbs | 6 kg 13lbs | 10 kg 22lbs | 15 kg 33lbs | 20 kg 44lbs | 25 kg 55lbs | 33 kg 73lbs | 40 kg 88lbs | 55 kg 121lbs | 70 kg 154lbs | 110 kg 243lbs |
Short URL: http://lindemann.kg/s/5/QJP
All article numbers marked in blue can be ordered.
All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
