pad eyes - - Diamon Deck eye

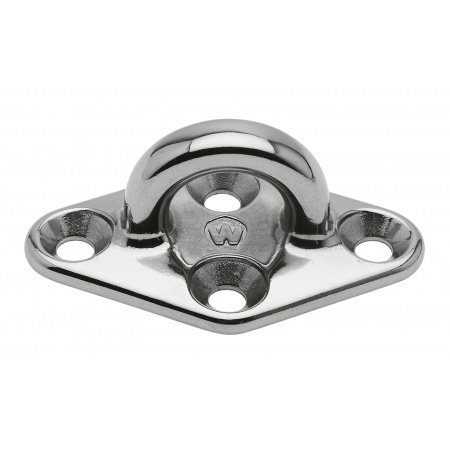

WICHARD Diamond deck eye for ropes and webbings, round bracket, Duplex stainless steel

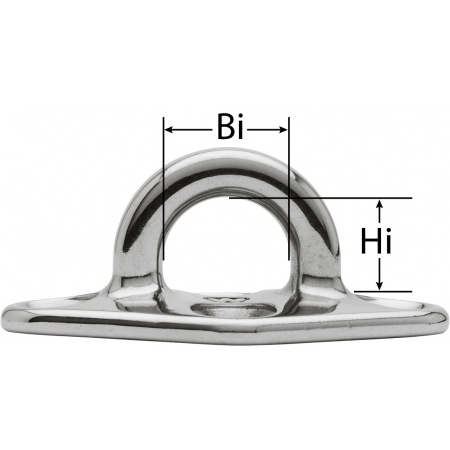

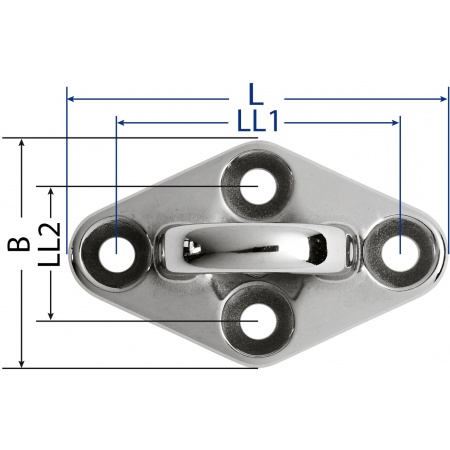

Art.-No.	L mm	B mm	LL1 mm	LL2 mm	Bi mm	Hi mm	Ø Bolt	BRL kg	WL Marine
SR6644 WICHARD Decksplatte, rautenförmig D6 Auge 14,5mm Price (EUR): € 35,00 per pc. on stock	60	38	46	24	19	14,3	M5	3000 kg	1100 kg
SR6645 WICHARD Decksplatte, rautenförmig D6 Auge 18,5mm Price (EUR): € 47,00 per pc. on stock	79	50	60	32	22	18,5	M6	6300 kg	2400 kg
SR6646 WICHARD Decksplatte, rautenförmig D6 Auge 22,0mm Price (EUR): € 64,50 per pc. procurement goods	98	59	73	35	27	22,0	M8	11000 kg	4100 kg

Short URL: http://lindemann.kg/s/3/VOi

All article numbers marked in blue can be ordered.

All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
