Clamcleat® Rope Cleats - Cleats for 1-6mm rope - Fairlead cleats
Die CL702 hat eine vorgeformte Grundplatte, für besseren Sitz auf Rohren.
| Art.-No. | Art.-No. | type | material |  |  mm |  |  |  | ||
| lose | SB-Pack | mm | A | B | C | |||||
| - | Micros | Nylon | 1 - 4 | 44 | 24 | 13 | M3 | 3 No.4 | 4,3g | |
| - | Micros white | Nylon | 1 - 4 | 44 | 24 | 13 | M3 | 3 No.4 | 4,3g | |
| - | Micros | Alu | 1 - 4 | 44 | 24 | 13 | M3 | 3 No.4 | 11,0g | |
| - | Micros hard anodised | Alu | 1 - 4 | 44 | 24 | 13 | M3 | 3 No.4 | 11,0g | |
| - | Micros hard anodised | Alu | 1 - 4 | 44 | 24 | 13 | M3 | 3 No.4 | 13,0g | |
| Junior | Nylon | 3 - 6 | 82 | 66 | 18 | M4 | 4,2 No.8 | 17g | ||
| - | Junior white | Nylon | 3 - 6 | 82 | 66 | 18 | M4 | 4,2 No.8 | 17g | |
| Racing Junior Mk1 silver | Alu | 3 - 6 | 82 | 66 | 18 | M5 | 4,8 No.10 | 34g | ||
| - | Racing Junior Mk1 chromed | Alu | 3 - 6 | 82 | 66 | 18 | M5 | 4,8 No.10 | 35g | |
| Racing Junior Mk1 hard anodised | Alu | 3 - 6 | 82 | 66 | 18 | M5 | 4,8 No.10 | 34g | ||
| Racing Junior Mk2 silver | Alu | 3 - 6 | 55 | 27 | 17 | M4 | 4,2 No.8 | 23g | ||
| Racing Junior Mk1 hard anodised | Alu | 3 - 6 | 55 | 27 | 17 | M4 | 4,2 No.8 | 23g | ||
| - | boom cleat silver | Alu | 3 - 6 | 82 | 66 | 18 | M5 | 4,8 No.10 | 34g | |
| - | boom cleat hard anodised | Alu | 3 - 6 | 82 | 66 | 18 | M5 | 4,8 No.10 | 34g | |
| - | Alu | 3 - 6 | 82 | 66 | 18 | M5 | 4,8 No.10 | 33g | ||
| - | Alu | 3 - 6 | 82 | 66 | 18 | M5 | 4,8 No.10 | 33g | ||
| - | Racing Sail Line | Alu | 3 - 6 | 70 | 49 | 21 | M4 | 4,2 No. 8 | 16g | |
| - | Omega hard anodized | Alu | 3 - 6 | 46 | 27 | 43 | M4 | 4,2 No. 8 | 31g | |
CL814 / CL815
Keeper
CL818 / CL819
CL816 / CL817

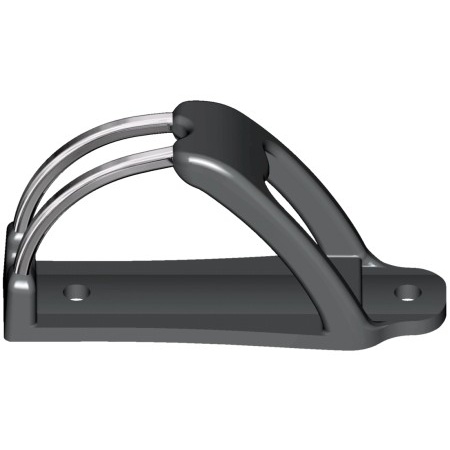

Cage
| Art.-No. | Art.-No. | suitable for | material | mm | | ||
| lose | SB-Pack | A | B | C | |||
| Keeper | |||||||
| CL203, CL211-I, CL217-I, CL218-I, CL236, CL704 | Acetal | 82 | 66 | 24 | 11g | ||
| - | CL211-II & CL211AN-II | Acetal | 55 | 27 | 21 | 9g | |
| tapered pad | |||||||
| - | CL203, CL211-I, CL217-I, CL218-I, CL236, CL704 | PP | 87 | - | 27 | 14g | |
| - | CL211-II & CL211AN-II | PP | 59 | - | 22 | 8g | |
| Cage | |||||||
| - | CL203, CL211-I, CL236 | to mount the cage you will need also the Keeper CL814 | |||||
| - | CL211-II, | to mount the cage you will need also the Keeper CL815 | |||||
Short URL: http://lindemann.kg/s/3/QHV
All article numbers marked in blue can be ordered.
All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
