spray hood fittings - Deck fittings

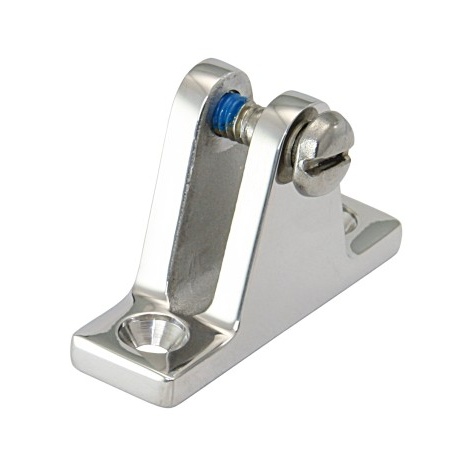

EK12

EK86108

Deck fitting 90° angle
AISI 316

Art.-No.		description	fork width mm	Ø Pin mm

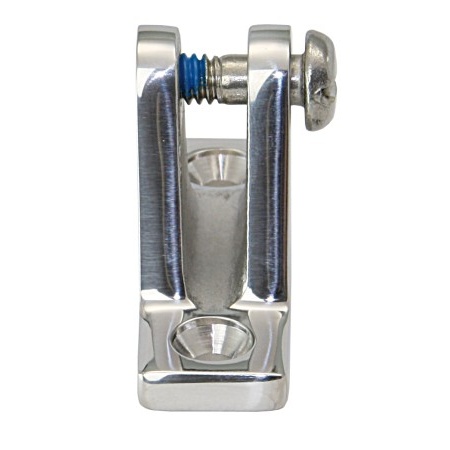

EK12 Verdeckbeschlag 90° A4 Schraube 6mm zöllig Price (EUR): € 11,00 per pc. on stock	90°	imperial	7,5 mm	6 mm
EK87106 Ersatz-Schraube A4 6mm mit Zollgewinde für Verdeckbeschlag EK12 Price (EUR): € 1,50 per pc. on stock		spare pin for EK12
EK95090 Verdeckbeschlag 90° A4 Schraube M6 Price (EUR): € 8,40 per pc. on stock	90°	metric	8 mm	6 mm

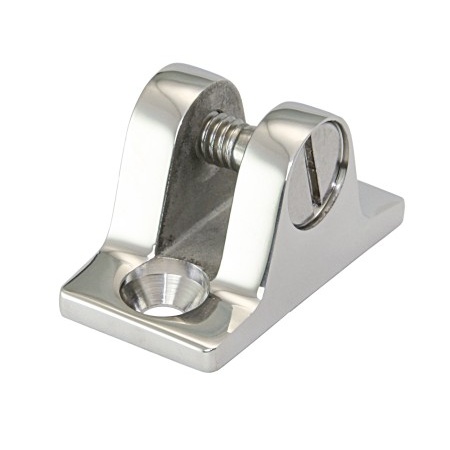

EK86108 Verdeckbeschlag 90°, weit A4 Schraube 8mm zöllig Price (EUR): € 21,00 per pc. on stock	90°	wide fitting, imperial	11 mm	8 mm

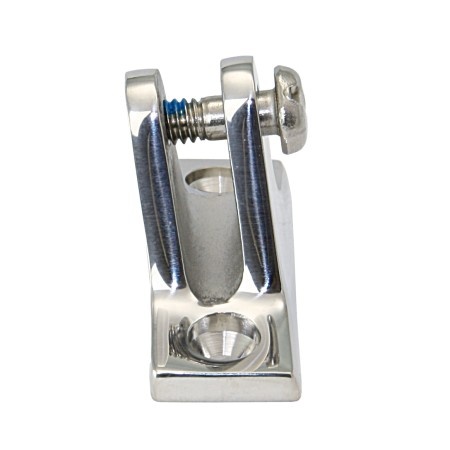

Deck fitting 80° angle
AISI 316

Art.-No.		description	fork width mm	Ø Pin mm

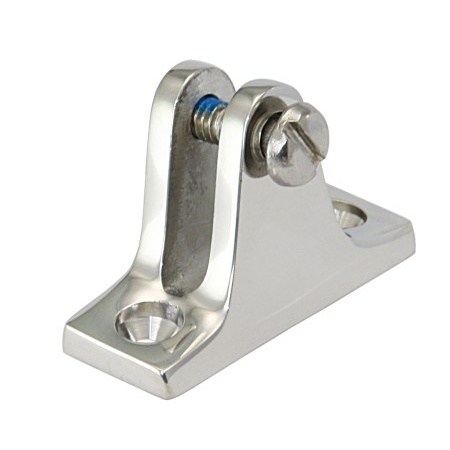

EK12A Verdeckbeschlag 80° A4 Schraube 6mm zöllig Price (EUR): € 13,00 per pc. on stock	80°	imperial	7 mm	6 mm
EK87106 Ersatz-Schraube A4 6mm mit Zollgewinde für Verdeckbeschlag EK12 Price (EUR): € 1,50 per pc. on stock		spare pin for EK12A
EK95080 Verdeckbeschlag 80° A4 Schraube M6 Price (EUR): € 8,20 per pc. on stock	80°	metric	8 mm	6 mm

90°

80°

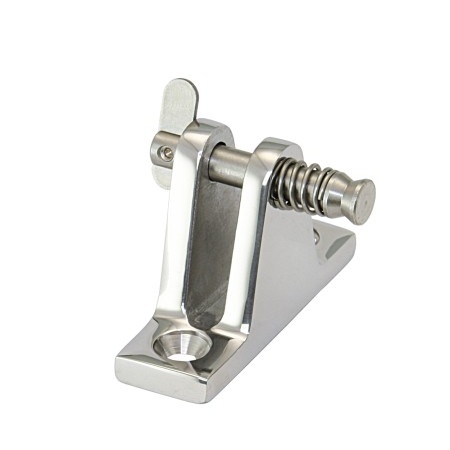

Deck fitting with drop nose pin and spring
AISI 316

Art.-No.		description	fork width mm	Ø Pin mm
EK86220 Verdeckbeschlag 90° A4 Klappnasenbolzen 6mm Price (EUR): € 22,00 per pc. on stock	90°	imperial	6 mm	6 mm
EK86220P Ersatz-Klappnasenbolzen mit Feder A4 6mm für EK86220 Price (EUR): € 7,00 per pc. on stock		Dropnosepin for EK86200 incl. spring		6 mm
EK95190 Verdeckbeschlag 90° A4 Klappnasenbolzen 6mm Price (EUR): € 9,50 per pc. on stock	90°	metric	7,5 mm	6 mm

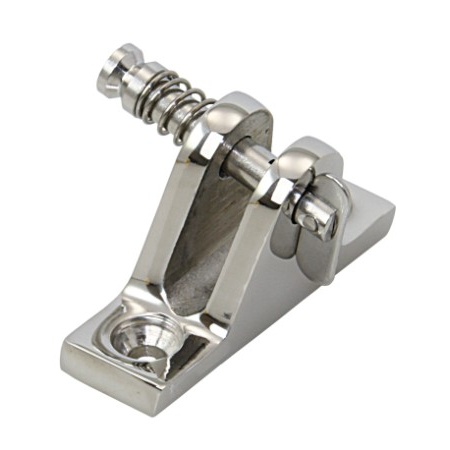

EK95180 Verdeckbeschlag 80° A4 Klappnasenbolzen 6mm Price (EUR): € 8,80 per pc. on stock	80°	metric	7,5 mm	6 mm

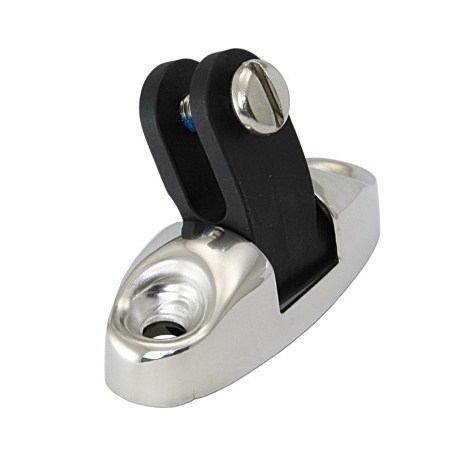

Deck fitting with stainless steel AISI 316 base and Nylon fork

Art.-No.	description	fork width mm	Ø Pin mm
EK17710N Verdeckgelenk mit Nylon-Gabel A4 Schraube 6mm zöllig, schwarz Price (EUR): € 10,50 per pc. on stock	imperial	7 mm	6 mm

EK95017

EK95018

Deck fitting high with stainless steel base and stainless steel fork
AISI 316

Art.-No.	description	fork width mm	Ø Pin mm
EK95017 Verdeckgelenk A4 Schraube M6 Price (EUR): € 16,60 per pc. on stock	metric	7,5 mm	6 mm

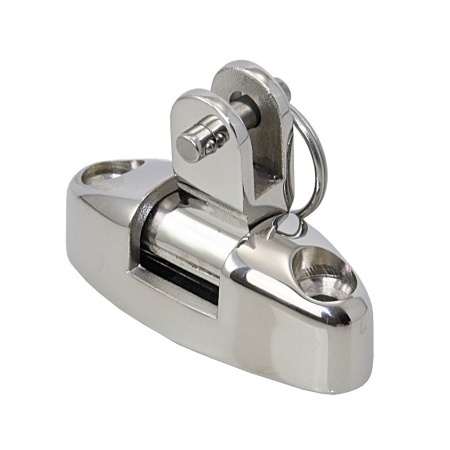

EK95018 Verdeckgelenk A4 Kugelsperrbolzen 6mm Price (EUR): € 17,20 per pc. on stock	with fast pin	8 mm	6 mm

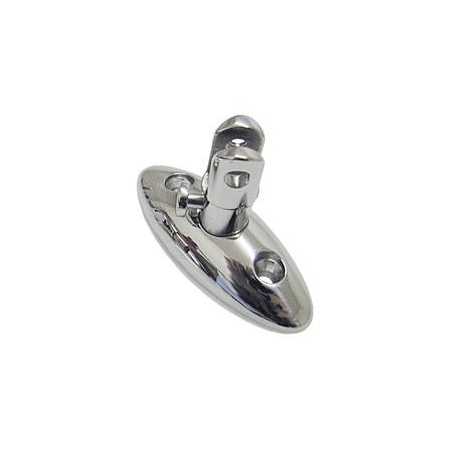

Rotating deck fittings in stainless steel AISI316

Art.-No.	description	fork width mm	Ø Pin mm
EK86607 Verdeckbeschlag abnehmbar/drehbar A4 Pin 6mm Price (EUR): € 44,50 per pc. on stock	with removeable fork	7 mm	6 mm

EQ86607

EQ86608

EK95016

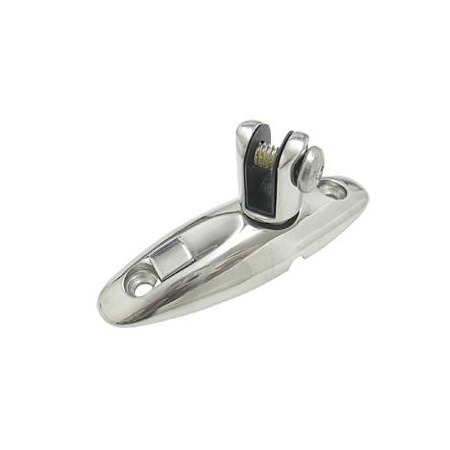

Deck fitting with removable fork
AISI 316

Art.-No.	description		fork width mm	Ø Pin mm
EQ86607 Verdeckbeschlag abnehmbar/drehbar A4 Pin 8mm Price (EUR): € 56,50 per pc. on stock	removable fork	imperial	7 mm	8 mm

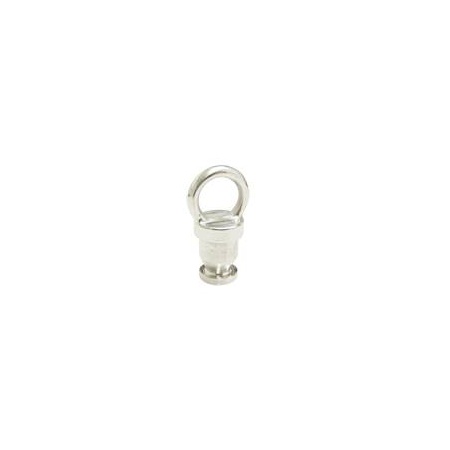

EQ86608 Fenderauge A4 iD=12,5mm für Verdeckbeschlag EQ86607 Price (EUR): € 24,60 per pc. on stock	replacement eye

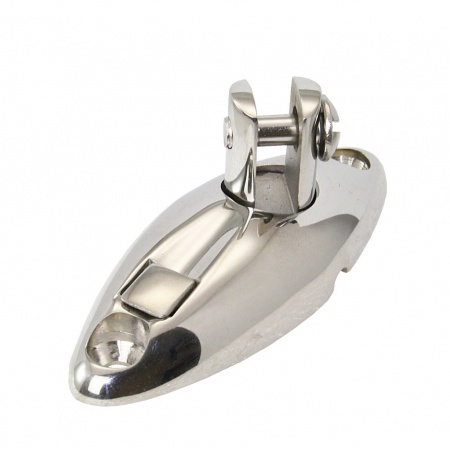

EK95016 Verdeckbeschlag abnehmbar/drehbar A4 Pin 6mm Price (EUR): € 26,70 per pc. on stock	removable fork	metric	8 mm	6 mm

AISI 316

Art.-No.	description	width Eye mm	eye-Ø mm

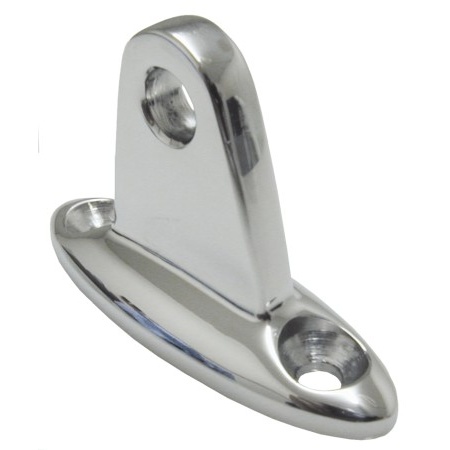

EK86605 Verdeckbeschlag mit Lasche, schmal A4 Auge 8mm Price (EUR): € 15,50 per pc. on stock	Deck fitting "extra slim"	7 mm	8 mm

AISI 316

Art.-No.	description	width Eye mm	eye-Ø mm

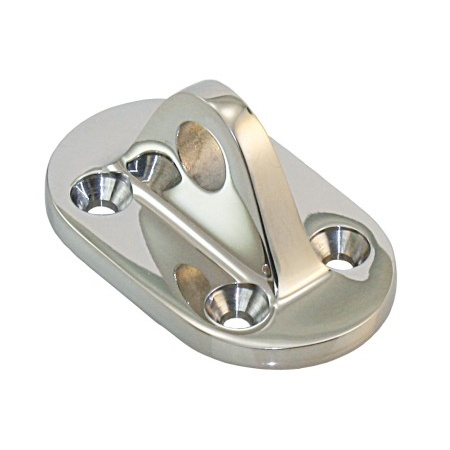

EK86087 Verdeckbeschlag mit Lasche, breit A4 Auge 11mm Price (EUR): € 14,00 per pc. on stock	Deck fitting	10 mm	11 mm

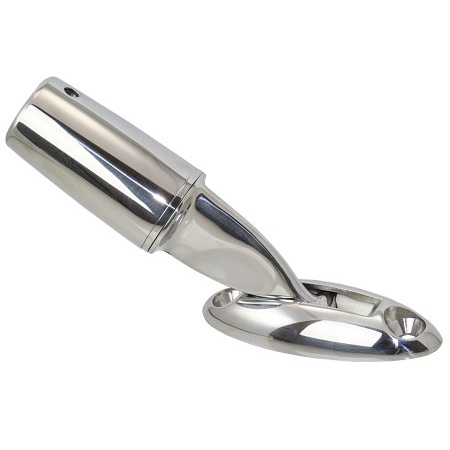

This Deck fitting is equipped with a spring lock and can be removed with one hand. No knobs, handles or pins. AISI 316

Art.-No.	description
EK86657 Verdeckbeschlag einhändig abnehmbar A4/Nylon für Rohr 22mm Price (EUR): € 64,50 per pc. on stock	deck fitting for tubes with 22mm Ø, removeable

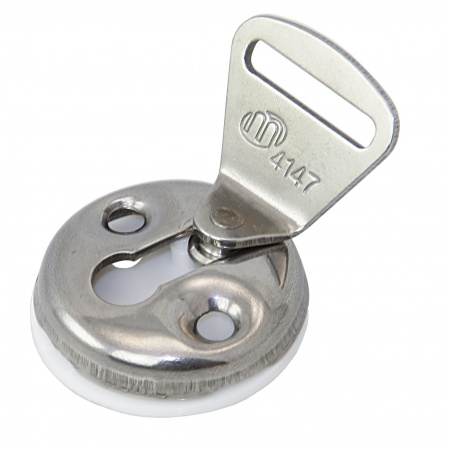

Removable strap buckles made of stainless steel AISI316. Fits on 25 mm webbing.

Art.-No.	Øa mm	ØLK mm	for webbing mm
HD4147 MAKEFAST Gurtband-Schnellverschluss mit Grundplatte A4 für Gurt 25mm 2-tlg. Price (EUR): € 47,10 per pc. on stock	59 mm	44 mm	25 mm

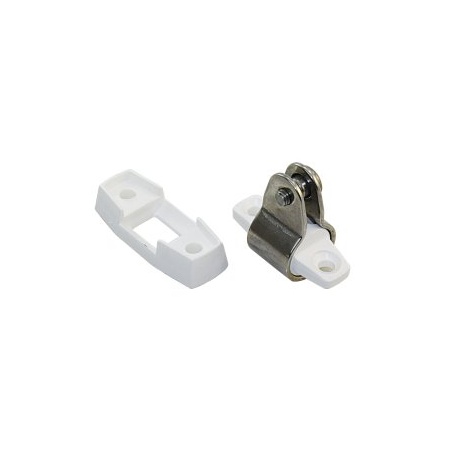

White plastic socket with stainless steel intake, 200° traversable.

Art.-No. premium quality	description	fork width mm	Ø Pin mm
HD603 Verdeckgelenk A4/Nylon Schraube 8mm zöllig, weiß Price (EUR): € 18,80 per pc. on stock	imperial	6 mm	8 mm

HD866

HD866A

Art.-No. premium quality	description		fork width mm	Ø Pin mm

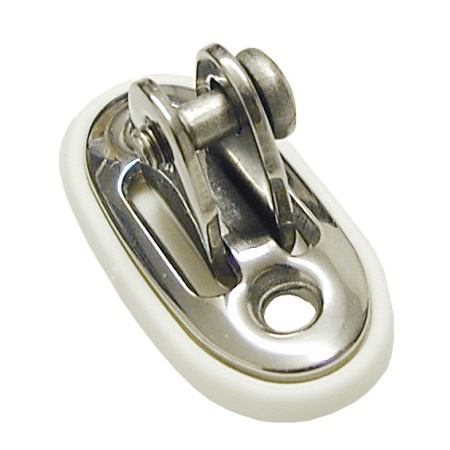

HD866 Verdeckbeschlag, schwenkbar A4/Nylon Schraube 6mm, weiß Price (EUR): € 28,10 per pc. on stock	with streight admission, flat plastic base	imperial	7 mm	6 mm
EQ866 Verdeckbeschlag, schwenkbar A4/Nylon Schraube M6, weiß Price (EUR): € 7,50 per pc. on stock	with streight admission, flat plastic base	metric	8 mm	6 mm

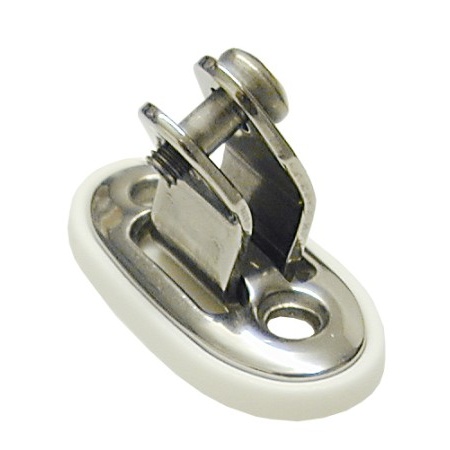

HD866A Verdeckbeschlag 45°, schwenkbar A4/Nylon Schraube 6mm, weiß Price (EUR): € 29,80 per pc. on stock	with 45° admission, flat plastic base	imperial	8 mm	6 mm

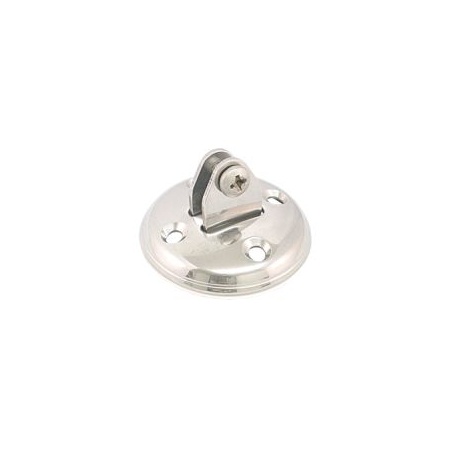

Deck fitting "heavy duty" for 4 bolts. straight clamp compl. with nylon deck shoe

Art.-No. premium quality	Øa mm	Ø hole circle mm	fork width mm	pin Ø mm
HD0996 Verdeckbeschlag, schwenkbar, rund A4/Nylon 64mm, Schraube 6mm Price (EUR): € 69,20 per pc. on stock	64 mm	44 mm	7 mm	6 mm

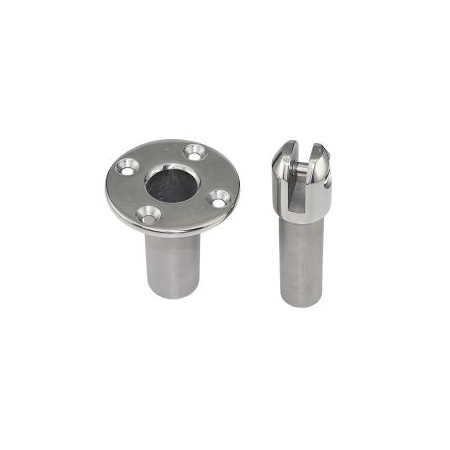

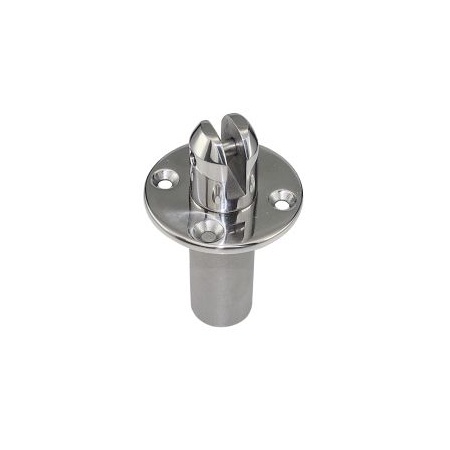

Heavy duty cast stainless deck fitting for recessed mounting with removable fork. Visible part with mirror polishing.

Art.-No.	description	Øa mm	Ø hole circle mm	Gabelweite mm	pin Ø mm
EK86596-1 Versenkbare Hülse A4 59mm, für Gabelkopf EK86596-2 Price (EUR): € 28,50 per pc. on stock	socket	59 mm	44 mm	-	-
EK86596-2 Einsteckbarer Gabelkopf A4 für versenkbare Hülse EK86596-1 Price (EUR): € 44,00 per pc. on stock	insert	-	-	7 mm

Short URL: http://lindemann.kg/s/2/QbD

All article numbers marked in blue can be ordered.

All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
