The RUTGERSON batten adjuster “BANTAM” and “LIMOUSINE” are made of black anodized Aluminium.
The unique snap system allows to remove the cover without tools. The innovative snap-function of this batten tensioner is very user-friendly for the sailors
additional offers this system an elegant design with no sharp edges and screws. Furthermore, these tensioners offers several advantages for the sailmaker, such as the quick and easy installation. Especially with large and heavy sails the installation is faster and easier. An other profit is the combined batten receptacle for classic and round sail battens.

BANTAM is the smaller version of the 1600 series and designed for monohull yachts with total length of 55ft and 44ft maximum at multihull yachts.

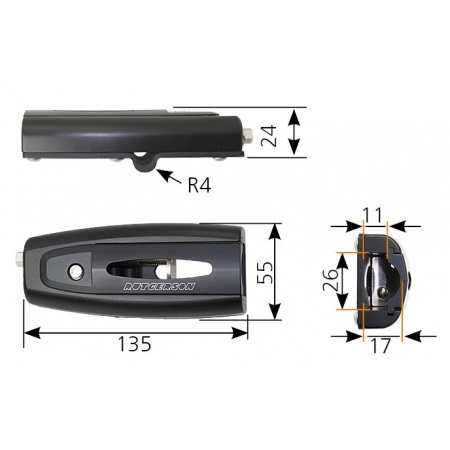

Art.-No.o.a. length
mm
width
mm
height
mm
Weight
g
for battens
max.
round sailbatten
max.
G
135 mm55 mm24 mm400 g25 x 10 mm16 mmM10
135 mm55 mm24 mm400 g25 x 10 mm16 mmM12
thumb
thumb
thumb
RUTGERSON BANTAM
Special edition with Titan screw for use with Carbone fibre sails
Art.-No.o.a. length
mm
width
mm
height
mm
Weight
g
for battens
max.
round sailbatten
max.
G
135 mm55 mm24 mm294 g25 x 10 mm16 mmM10 - Titan
135 mm55 mm24 mm294 g25 x 10 mm16 mmM12 - Titan

Short URL: http://lindemann.kg/s/2/RSK

All article numbers marked in blue can be ordered.

All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
