GOTECH-OBF
Hydraulic steering kit for outboard single engines up to 115 HP. 4,5 turns from lock to lock. Steering wheel not included.

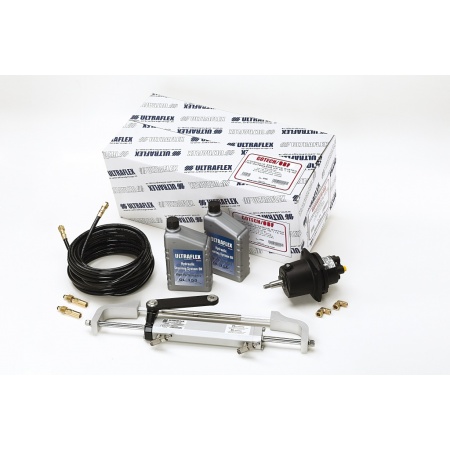

GOTECH-OBF package kit contains:
• UP18F - Intermediate mount helm pump
• UC81-UBF - Front mount outboard cylinder UC81-UBF
• OL150 - Hydraulic-oil, 2 litres
• Hose kit Ø 1/4”, 6 Meter length (19,7”) mit fitting preassembled at one end only.

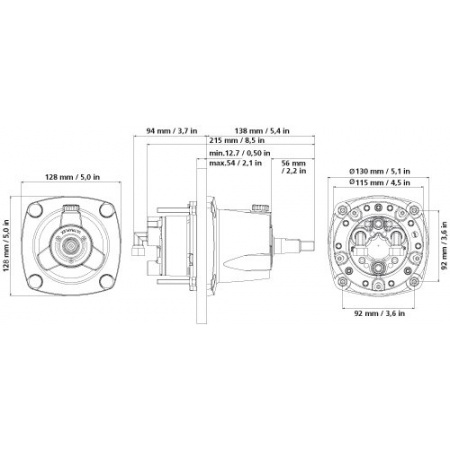

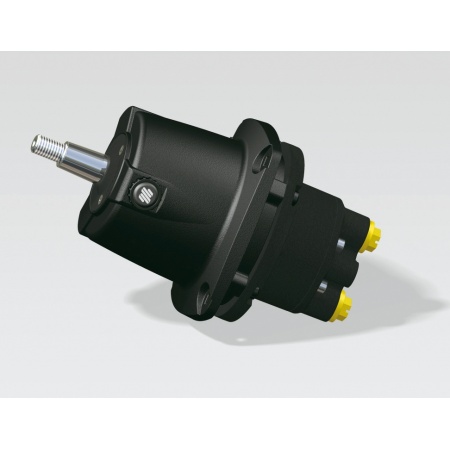

UP18F helm pump
• Built-in lock valve
• Integral relief valve (55 bar - 800 PSI)
• 3/4” tapered stainless steel shaft
• Corrosion proof composite housing
• Easy accessible lock valve and shaft seal for replacement
• For use with UC81-UBF cylinder only
• Intermediate dashboard position mount
• Maximum steering wheel diameter: 508 mm (20“)
• Weight 3,6 kg
Art.-Nr.:
GOTECH-OBF Steering Kit
UP18F helm pump (included in set GOTECH-OBF)
UC81-UBF cylinder (included in set GOTECH-OBF)
Hose kit 2x 6 m, shortenable

Short URL: http://lindemann.kg/s/13/VGU

All article numbers marked in blue can be ordered.

All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
