steering systems - T91 / T93ZT - Steering Helm

UF42647S

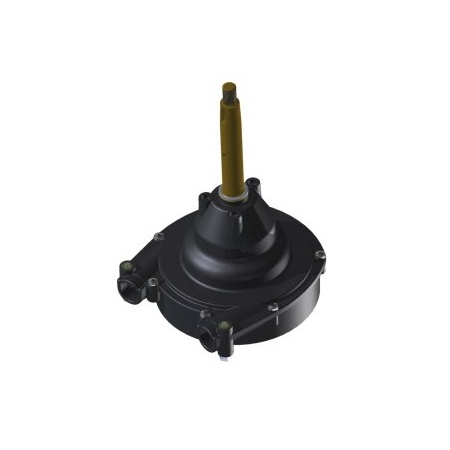

T91

UF42648U

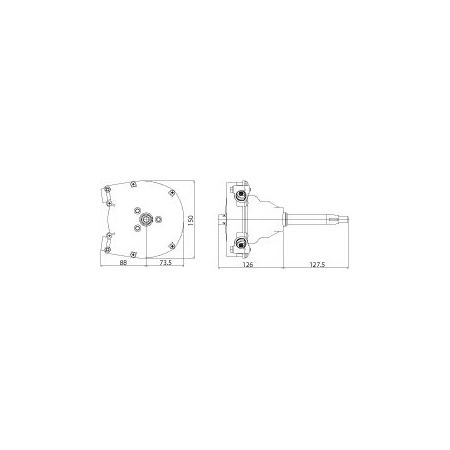

T93TZ

A complete steering system consist of:

• Steering helm
• Mounting bezel
• M90 Mach Steering cable
• Steering wheel
• Engine connection kits

Features and technical specifications:

• Patented nonreversible mechanism
• Fast connect, simple installation
• Optional 90° or 20° installation
• All stainless steel cable output ends
• Lock-to-Lock steering wheel turns: approx. 3,8
• Stroke: 228 mm
• Maximum allowable steering wheel Ø: 406 mm (16")
• Maximum steering cable bend radius: 200 mm (7,9")

Art.-No.	description	type
UF42647S ULTRAFLEX Steuerkopf T91 mit Planetengetriebe Price (EUR): € 155,00 per pc. on stock	single cable	T91
UF42648U ULTRAFLEX Steuerkopf T93ZT mit Planetengetriebe und Zero-Torque Price (EUR): € 286,20 per pc. procurement goods	single cable Zero Torque	T93ZT

Short URL: http://lindemann.kg/s/13/Q9W

All article numbers marked in blue can be ordered.

All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
