steering systems - - Steering Helm

UF38439Z

UF39213M

A complete steering system consist of:

• Steering helm:

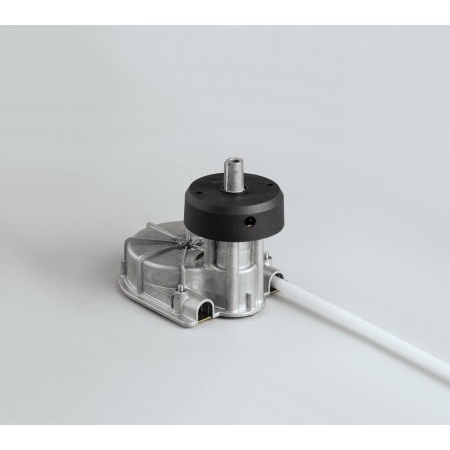

  • UF38439Z - Black bezel

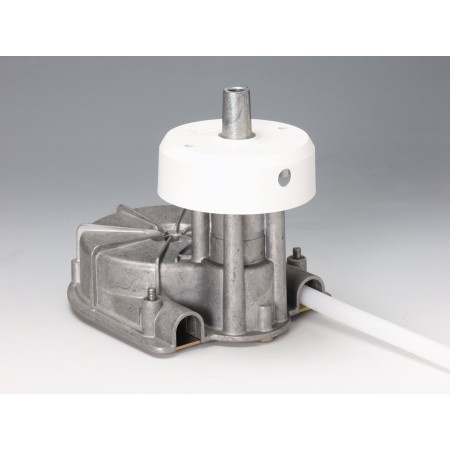

  • UF39213M - White bezel

• Steering cable: M66
• Optional steering wheel
• Engine connection kits

Features and technical specifications

• All stainless steel cable output ends
• Corrosion resistant materials
• Lock-to lock steering wheel turns: approx. 3
• Stroke 228 mm (9”)
• Maximum allowable steering wheel Ø: 406 mm (16”)
• Minimum steering cable bend radius: 200 mm (7.9”)
• Minimal feedback

  For use with outboard engines up to 40 kW (55 hp). T85 steering system is not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat

Art.-No.	Colour bezel	Typ
UF38439Z ULTRAFLEX Steuerkopf T85, Nabenkappe schwarz Price (EUR): € 155,10 per pc. on stock	black	T85
UF39213M ULTRAFLEX Steuerkopf T85, Nabenkappe weiß Price (EUR): € 119,00 per pc. on stock	white	T85W
