steering systems - - Steering Helm

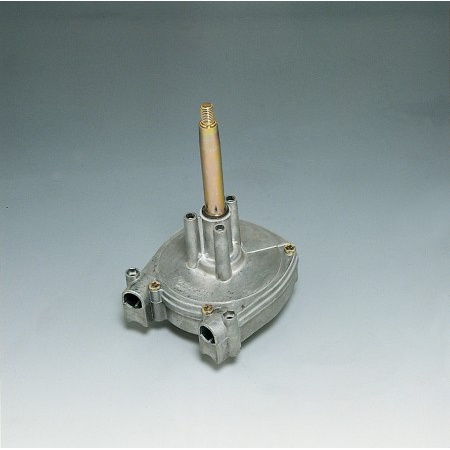

UF38867H
Typ T71FC

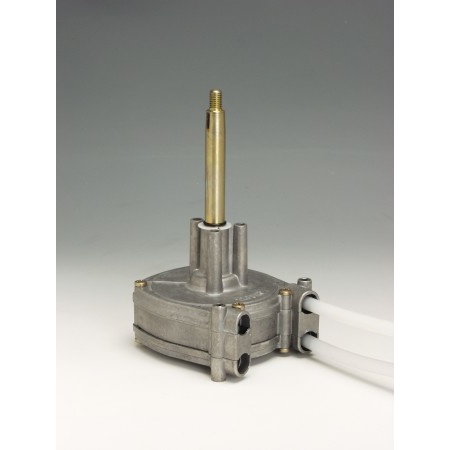

UF38868K
Typ T72FC

A complete steering system consist of:

• Steering helm
• Mounting bezel
• cable: M66
• Optional steering wheel
• Engine connection kits

Features and technical specifications

• All stainless steel cable output ends
• Corrosion resistant materials
• Optional 90° or 20° installation
• Lock-to-lock steering wheel turns: approx. 3,8
• Stroke: 228 mm (9”)
• Maximum allowable steering wheel Ø: 406 mm (16”)
• Minimum steering cable bend radius: 200 mm (7.9”)
• Minimal feedback

For boats faster than 50 mph the twin cable steering system T72FC is recommended

Art.-Nr.	description	Typ
UF38867H ULTRAFLEX Steuerkopf T71FC mit Planetengetriebe, für 1 Steuerkabel Price (EUR): € 149,60 per pc. on stock	für ein Steuerkabel	T71FC
UF38868K ULTRAFLEX Steuerkopf T72FC mit Planetengetriebe, für 2 Steuerkabel Price (EUR): € 337,00 per pc. available shortly	für Doppelsteuerkabel	T72FC

Short URL: http://lindemann.kg/s/13/Q9S

All article numbers marked in blue can be ordered.

All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
