windshield wiper - EXALTO Wiper System - Wiper motors

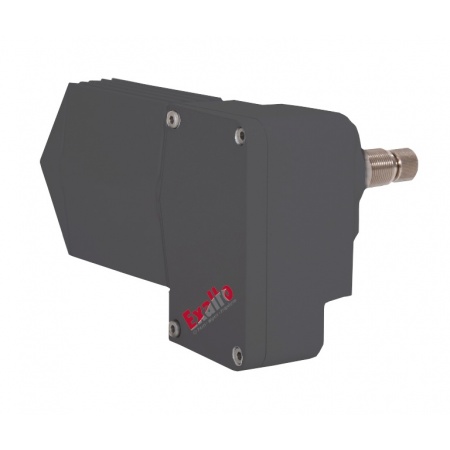

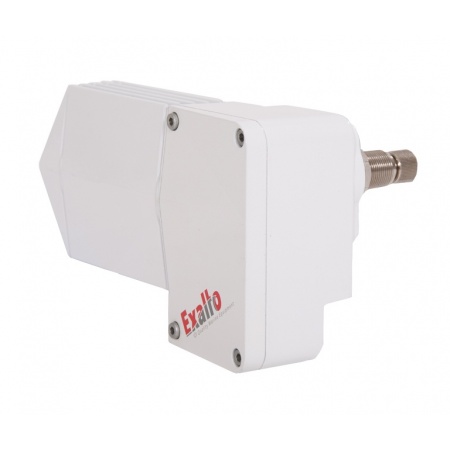

The EXALTO wiper motor type 215BD is suitable for bulkhead and glass mounting. Parallel wiper arms can also be mounted. The necessary mounting plate is supplied with the parallel wiper arms. The wiper motor unit is fully enclosed in a waterproof housing. The housing is rated at IP66, so the 215BD is suitable for both open and covered boats. Insulated earth return as standard. Two speed levels, self parking function. Adjustable wiping arc 40° - 110°.
| Art.-No. | shaftlength mm | Voltage V | Stärke Durchlass mm%en=Bulkhead thickness mm | Power W | colour |
| 25 mm | 12 V | 0 - 15 mm | 15 W | white | |
| 25 mm | 24 V | 0 - 15 mm | 15 W | white | |
| 50 mm | 12 V | 15 - 40 mm | 15 W | white | |
| 50 mm | 24 V | 15 - 40 mm | 15 W | white | |
| 75 mm | 12 V | 40 - 65 mm | 15 W | white | |
| 75 mm | 24 V | 40 - 65 mm | 15 W | white | |
| 25 mm | 12 V | 0 - 15 mm | 15 W | black | |
| 25 mm | 24 V | 0 - 15 mm | 15 W | black | |
| 50 mm | 12 V | 15 - 40 mm | 15 W | black | |
| 50 mm | 24 V | 15 - 40 mm | 15 W | black | |
| 75 mm | 12 V | 40 - 65 mm | 15 W | black | |
| 75 mm | 24 V | 40 - 65 mm | 15 W | black |
| Arm length: | 300-600 mm |
| Max. Blade length: | 600 mm |
| Ø driveshaft: | 16 mm |
| Protection class: | IP66 |
| Torque: | 18 Nm |
Short URL: http://lindemann.kg/s/13/VHr
All article numbers marked in blue can be ordered.
All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
