marine instruments - Sensors for marine instruments - CN ultrasense

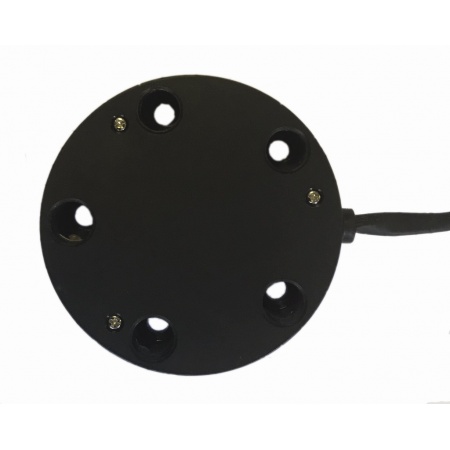

The CN Ultrasense can be used for all types of tanks and can be programmed with different outputs: 240-33 ohms, 10-180 ohms and 0-5 volts. With less than 20 mm height and standard SAE 5-hole mounting, the sensor fits almost any commercially available tank.
With the 240-33 Ohm or 10-180 Ohm setting, the
CN Ultrasense can be connected to displays of many well-known brands, for example. CN Ultrasense is set to a tank depth of 0-2000 mm as standard.

Specifications:
• Operating voltage: 10-32 Volt
• Current consumption: 25 mA at 5 Volt instrument output

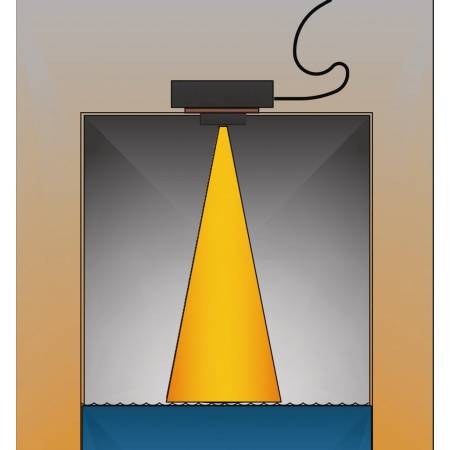

• Operation: Acoustic sound measurements
• Tank depth: 0 to 2000 mm
• Accuracy: range 200 - 2000 mm, 3 mm accuracy
• Programmable: 240-33 Ohm, 10-180 Ohm, 10-300 Ohm, 0-5 Volt
• Mounting: SAE 5 hole pattern, hole size 33 mm, incl. mounting material, can only be mounted from above
• Ambient temperature: 4 to 65° C.
• Chemical resistance: petrol, diesel, water, toilet chemicals.
• Tank material: metal and plastic, grey and black water, petrol and diesel.
