rigging screw - Racing rigging screw - QRT Terminal-Toggle
QRT • QuickRacingTuning

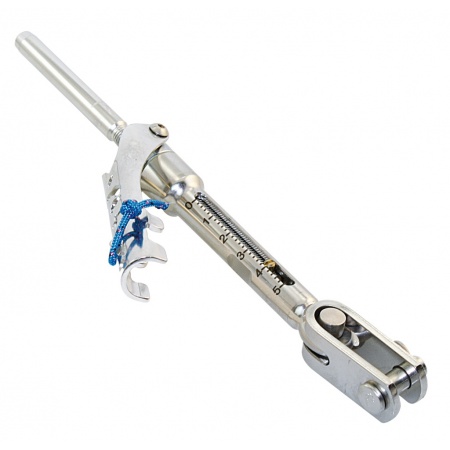

The QRT racing rigging screw made of AISI 316 by BLUE WAVE for the hardcore racing crews. It features an adjustment nut in chromed high quality alu bronze. Engraved calibration scale and quick adjust handle for fast and accurate tuning of the rig.
| Art.-No. | G UNF | L1 mm | L2 mm | L4 mm | Ø mm | Bi mm | wirerope-Ø | BRL kg |
| 1/4" | 206 | 166 | 12,8 | 6,35 | 8 | 2,5 mm | 1000 | |
| 1/4" | 212 | 172 | 12,8 | 6,35 | 8 | 3,0 mm | 1300 | |
| 5/16" | 251 | 201 | 16,0 | 8,00 | 10 | 4,0 mm | 1700 | |
| 5/16" | 258 | 208 | 16,0 | 8,00 | 10 | 5,0 mm | 2200 | |
| 7/16" | 335 | 265 | 24,4 | 11,10 | 15 | 6,0 mm | 4600 | |
| 7/16" | 342 | 272 | 24,4 | 11,10 | 15 | 7,0 mm | 4600 |

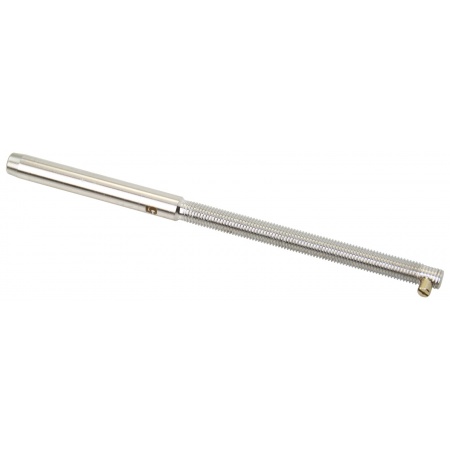

Replacement thread terminal for QRT rigging screws.

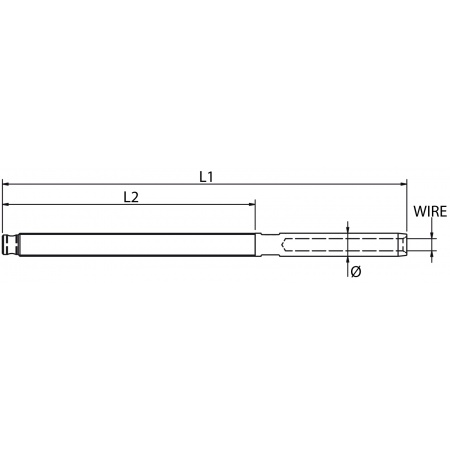

| Art.-No. | G LH UNF | L1 mm | L2 mm | Ø mm | Wire rope mm | BRL kg |
| 1/4" | 117 | 80 | 5,50 | 2,5 mm | 1300 kg | |
| 1/4" | 128 | 80 | 6,35 | 3,0 mm | 1300 kg | |
| 5/16" | 153 | 93 | 7,50 | 4,0 mm | 2200 kg | |
| 5/16" | 159 | 93 | 9,00 | 5,0 mm | 2200 kg |
Short URL: http://lindemann.kg/s/1/VGj
All article numbers marked in blue can be ordered.
All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
