swage terminals - T-Terminals - Backplate

thumb
thumb
thumb

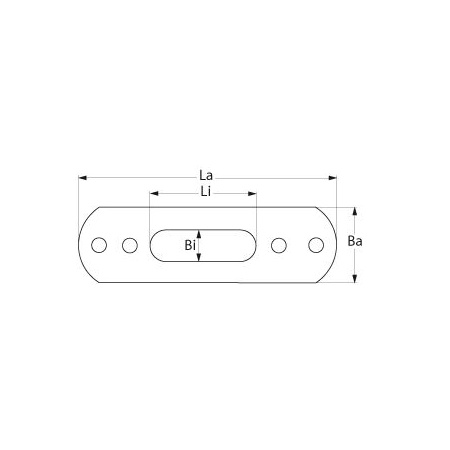

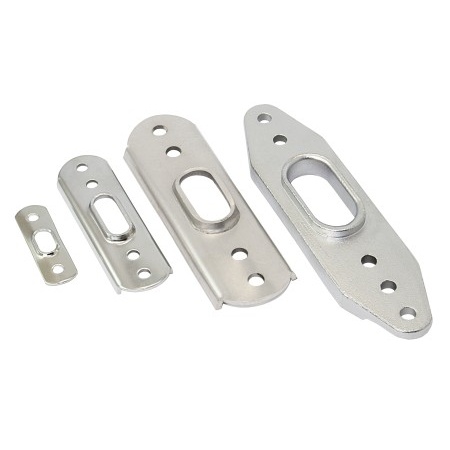

Back plates for BLUE WAVE t-Terminals, AISI 316
Art.-No.suitable
wire rope Ø		La
mm		Li
mm		Ba
mm		Bi
mm
2,0 - 3,0 mm5012,5157,0
4,0 - 5,0 mm8826,0269,5
6,0 - 7,0 mm12332,03815,0
8,0 - 10,0 mm15141,03819,0
thumb
thumb
thumb
thumb

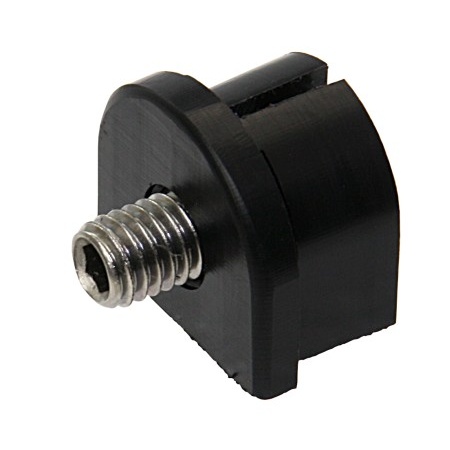

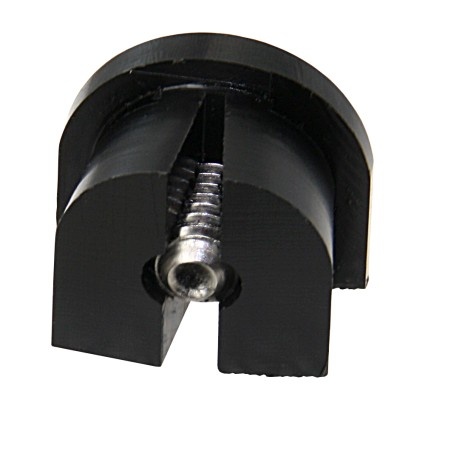

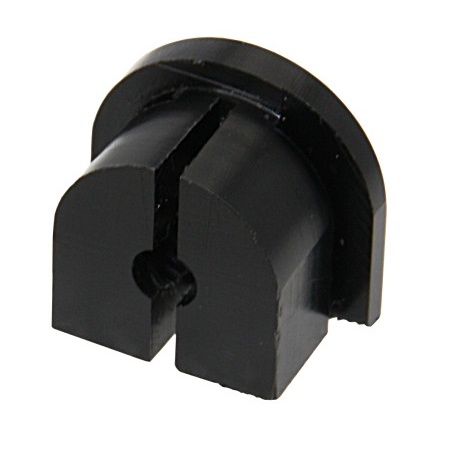

BLUEWAVE Locking plug for T-Terminal back plates. Just set in the plug and secure it with the inside-hexagon locking screw.
Art.-No.for wire rope Ø
mm		suitable forback plate
2,0 - 3,0 mmBlueWavePH616103
4,0 - 5,0 mmBlueWavePH616105
6,0 - 7,0 mmBlueWavePH616107
8,0 - 10,0 mmBlueWavePH616110
3,0 mmswedish terminals
4,0 mmswedish terminals
5,0 mmswedish terminals
6,0 mmswedish terminals
7,0 mmswedish terminals
8,0 mmswedish terminals

Short URL: http://lindemann.kg/s/1/QVC

All article numbers marked in blue can be ordered.

All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
