swage terminals - Studterminals - metric thread
AISI 316

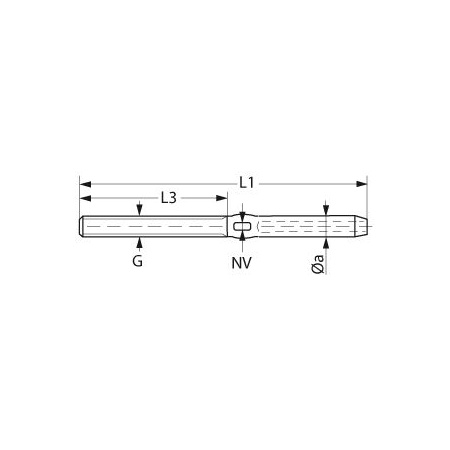

| Art.-No. right | Art.-No. left | G | Øa mm | L1 mm | L3 mm | NV mm | wirerope-Ø | BRL kg |
| - | M5 | 5,50 | 87 | 42 | 4,5 | 2,0 mm | 800 | |
| M5 | 5,50 | 87 | 42 | 4,5 | 2,5 mm | 800 | ||
| M6 | 6,35 | 100 | 48 | 5,0 | 3,0 mm | 1200 | ||
| M6 | 7,50 | 110 | 48 | 6,0 | 4,0 mm | 1200 | ||
| M8 | 7,50 | 117 | 57 | 6,0 | 4,0 mm | 2200 | ||
| M8 | 9,00 | 123 | 57 | 7,0 | 5,0 mm | 2500 | ||
| M10 | 9,00 | 130 | 63 | 7,0 | 5,0 mm | 3500 | ||
| M10 | 12,58 | 145 | 63 | 11,0 | 6,0 mm | 3500 | ||
| M12 | 12,58 | 162 | 80 | 11,0 | 6,0 mm | 5100 | ||
| M14 | 14,20 | 180 | 89 | 12,0 | 7,0 mm | 6800 | ||
| M16 | 16,00 | 203 | 100 | 14,0 | 8,0 mm | 8700 | ||
| - | M16 | 17,80 | 210 | 100 | 15,0 | 10,0 mm | 8700 | |
| - | M20 | 17,80 | 230 | 120 | 15,0 | 10,0 mm | 9700 | |
| - | M20 | 20,00 | 249 | 120 | 17,0 | 12,0 mm | 11400 | |
| - | M22 | 25,00 | 308 | 140 | 22,0 | 14,0 mm | 15900 |

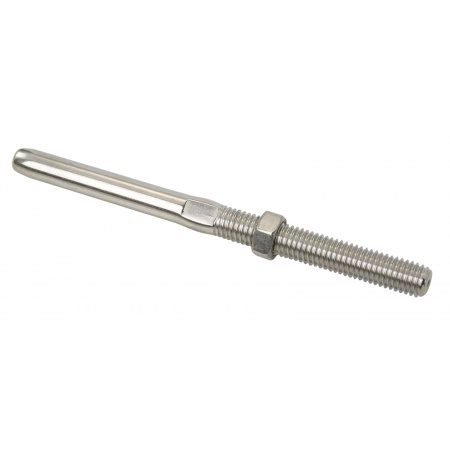

Thread terminals for processing with swaging or pressing machines,
made of stainless steel A4 AISI316
made of stainless steel A4 AISI316
| Art.-No. right | wire rope Ø | G | GL mm | length mm | shaft-Ø mm |
| 2,0 mm | M5 | 40 mm | 85 mm | 5,5 mm | |
| 2,5 mm | M5 | 40 mm | 85 mm | 5,5 mm | |
| 3,0 mm | M6 | 48 mm | 100 mm | 6,4 mm | |
| 4,0 mm | M6 | 48 mm | 110 mm | 7,5 mm | |
| 4,0 mm | M8 | 57 mm | 117 mm | 7,5 mm | |
| 5,0 mm | M8 | 57 mm | 125 mm | 9,0 mm | |
| 5,0 mm | M10 | 63 mm | 130 mm | 9,0 mm | |
| 6,0 mm | M12 | 80 mm | 160 mm | 12,6 mm |
Short URL: http://lindemann.kg/s/1/QBh
All article numbers marked in blue can be ordered.
All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
