swage terminals - Fork terminals

thumb
thumb
thumb

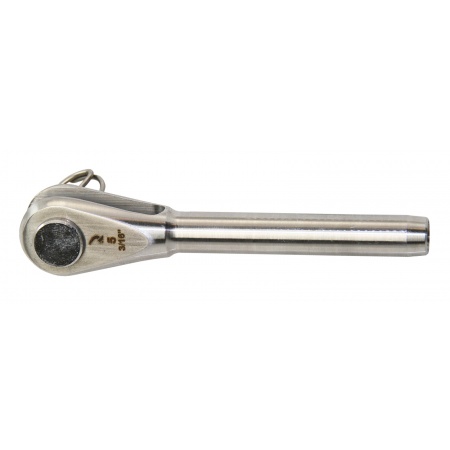

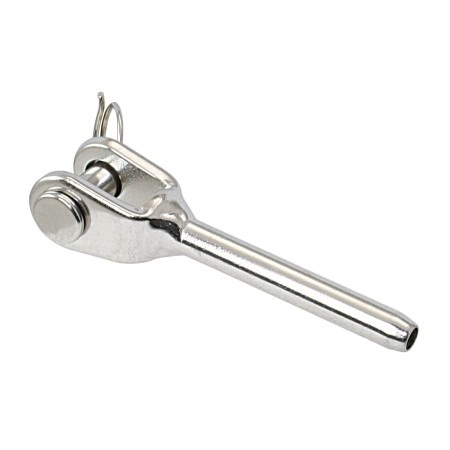

Fork Terminals from BLUEWAVE, welded
Stainless Steel AISI 316

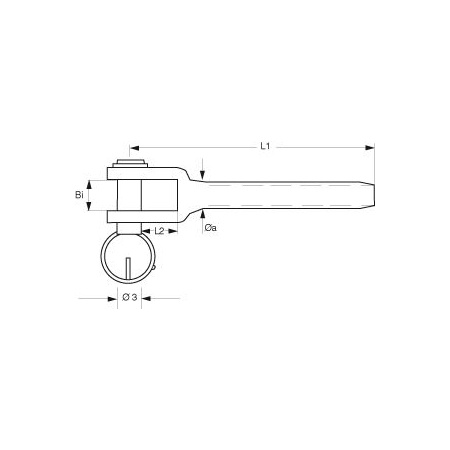

Art.-No.Øa
mm		L1
mm		L2
mm		Ø3
mm		Bi
mm		wirerope-ØBRL
kg
5,50589,505,07,52,0800
5,50589,505,07,52,5800
6,35679,505,07,53,0800
6,356810,006,09,53,01300
6,356810,006,49,53,01300
7,50719,505,07,54,0800
7,507310,006,09,54,01500
7,507310,006,07,54,01500
7,507711,008,08,04,01700
7,507711,008,011,04,01700
9,008711,008,011,05,02400
9,009114,259,512,05,02400
12,5810414,259,512,06,03800
12,5810817,5011,013,06,04700
12,5811019,0012,014,06,05200
14,2011919,0012,014,07,06500
16,0013619,0012,714,08,05100
16,0014525,0016,017,08,08500
17,8015125,0014,018,010,09400
17,8014925,0016,017,010,09400
20,0018938,5019,024,012,011200
25,0023246,0022,030,014,015000

LK6732A4
LK6743A4
LK6754A4

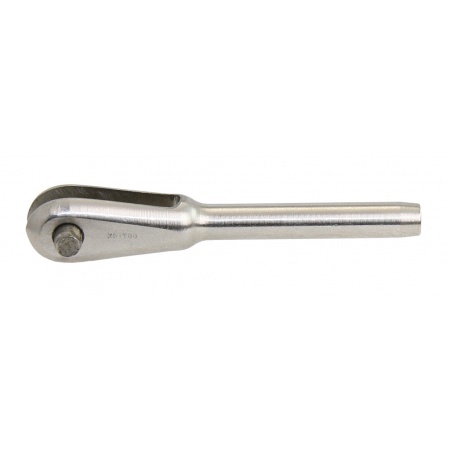

LK6732A4<br>LK6743A4<br>LK6754A4thumb

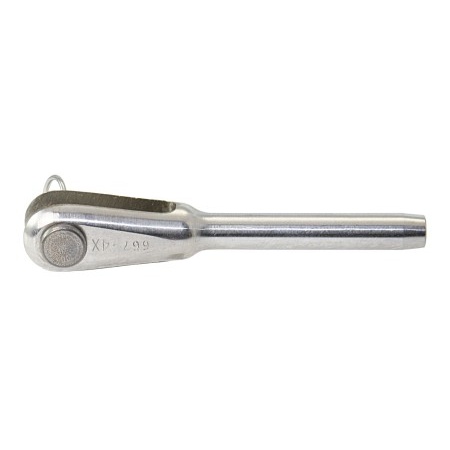

LK6765A4

LK6765A4thumb

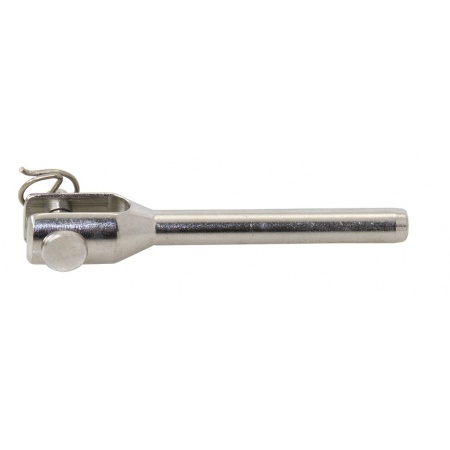

PH...

PH...thumb
Starboat terminals, Slim style, AISI 316 with bolt AISI 304
Delivered without pin (LK6764A4 with ring pin)
Art.-No.Øa
mm		L1
mm		L2
mm		Ø3
mm		Bi
mm		wirerope-Ø
inch		wirerope-Ø
nom. mm
Fork terminal AISI316 with pin AISI304
5,549,414,64,82,73/32" 2,5
6,359,716,24,84,91/8"3,2
7,567,417,16,35,15/32"4,0
9,178,018,37,96,63/16"4,8

fork terminal with pin AISI316
6,3561 55,3 3,0
7,5069 65,2 4,0
thumb
thumb
thumb
BLUEWAVE Fork terminals, slim style made of stainless steel AISI 316L A4L
Art.-No.Øa
mm		L1
mm		L2
mm		Ø3
mm		Bi
mm		Drahtseil Ø
inch		Drahtseil Ø
nom. mm
5,549,014,55,02,83/32" 2,5
6,360,016,25,05,2-3,0
7,567,017,16,35,25/32" 4,0
9,078,019,87,96,63/16"5,0
thumb
Fork terminals for processing with swaging or pressing machines,
made of stainless steel A4 AISI316
Art.-No.wire rope
mm		pin-Ø
mm		width fork
mm		shaft-Ø
mm
2 mm5,2 mm7,0 mm5,5 mm
3 mm5,7 mm7,5 mm6,4 mm
4 mm7,7 mm10,0 mm7,5 mm
5 mm8,7 mm12,0 mm9,0 mm
6 mm11,7 mm14,0 mm12,6 mm

Short URL: http://lindemann.kg/s/1/Q22

All article numbers marked in blue can be ordered.

All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
