swage terminals - Eye terminals

thumb
thumb
thumb

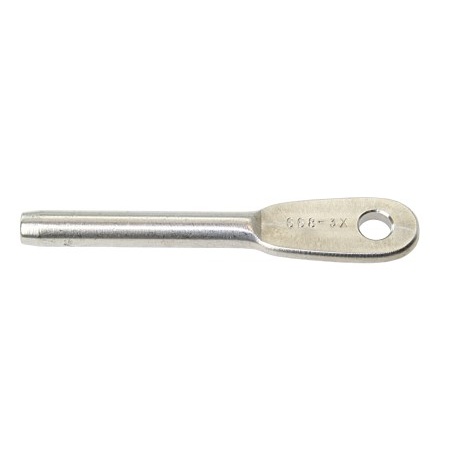

Eye Terminals from BLUEWAVE
Stainless steel AISI 316

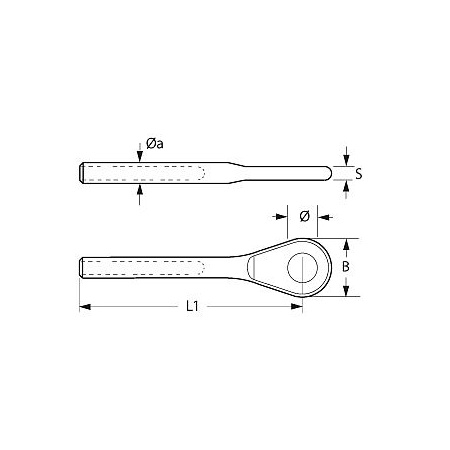

Art.-No.Øa
mm		B
mm		L1
mm		Ø
mm		S
mm		wirerope-ØBRL
kg
5,5012,0415,532 mm1200
5,5012,0445,532,5 mm1000
6,3514,0606,543 mm1300
7,5017,0678,554 mm1700
9,0021,07910,565 mm2400
12,5825,09413,086 mm5500
14,2027,010413,097 mm6800
16,0030,012414,5108 mm8000
16,0036,014116,5128 mm8000
17,8035,013716,31110 mm9700
17,8040,016519,51610 mm9700
20,0040,015619,31512 mm11400
21,4040,017819,31512 mm14200
25,0047,020623,01814 mm15900
28,0053,023226,02016 mm19000
thumb
thumb

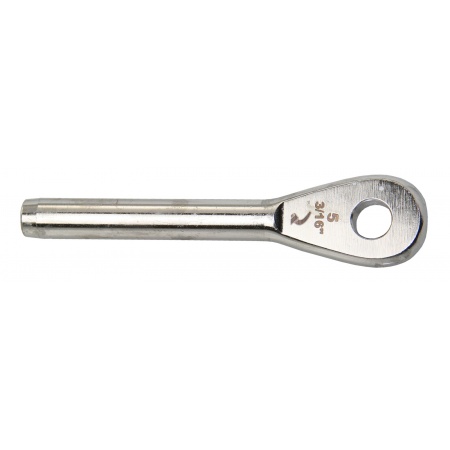

Starboat eye terminals, Slim style
Stainless Steel AISI316
Art.-No.(MS Part No.)Øa
mm		B
mm		L1
mm		Ø
mm		S
mm		wirerope-Ø
inch		wirerope-Ø
nom. mm
MS20668-35,511,151,94,82,63/32"2,5
MS20668-46,312,765,94,84,81/8"3,2
MS20668-57,516,376,96,35,05/32"4,0
thumb
thumb
thumb
BLUEWAVE Eye terminals, slim style made of stainless steel AISI 316L A4L
Art.-No.Øa
mm		B
mm		L1
mm		Ø
mm		S
mm		Drahtseil Ø
inch		Drahtseil Ø
nom. mm
5,511,152,05,22,63/32"2,5
6,312,759,45,24,8-3,0
7,516,368,26,55,05/32"4,0
9,019,876,78,06,53/16"5,0
thumb
Eye Terminals for processing with swaging or pressing machines,
made of stainless steel A4 AISI316
Art.-No.wire rope
mm		Ø eye
mm		shaft-Ø
mm
3 mm6,56,4 mm
4 mm8,57,5 mm
5 mm10,09,0 mm
6 mm12,512,6 mm

Short URL: http://lindemann.kg/s/1/Q7F

All article numbers marked in blue can be ordered.

All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
