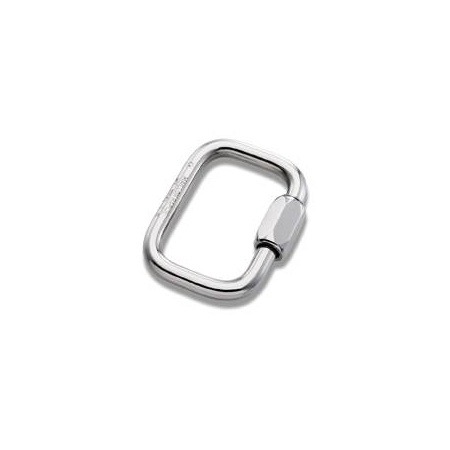

quick links - square shape
in stainless steel A4L AISI316L
| Art.-No. | La mm | Li mm | Ø mm | Bi mm | L2 mm | weight g | BRL kg | WL 5:1 kg |
| 39,5 | 31,5 | 4 | 25 | 5,5 | 15,3 | 1000 | 200 | |
| 47,5 | 37,5 | 5 | 28 | 6,5 | 26,7 | 1625 | 325 | |
| 55,0 | 43,0 | 6 | 31 | 7,5 | 44,0 | 2250 | 450 |
The specified BRL only applies to the load on the main axis and only when the thread is completely screwed down.
Short URL: http://lindemann.kg/s/1/QH3
All article numbers marked in blue can be ordered.
All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
