quick links - Pear Type

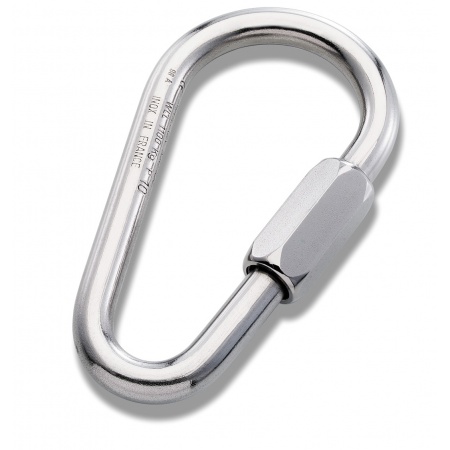

PEGUET Quick links pear type
Stainless steel A4L AISI316L with wide opening
The pear shape allows multiple suspensions on one side. (The breaking load BRL and working load WL refer to one straight-line load in main direction)
Stainless steel A4L AISI316L with wide opening
The pear shape allows multiple suspensions on one side. (The breaking load BRL and working load WL refer to one straight-line load in main direction)

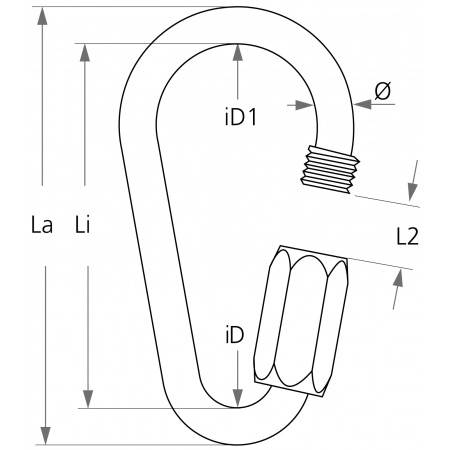

Art.-No. | Ø mm | La mm | Li mm | iD mm | iD1 mm | L2 mm | BRL kg | WL 5:1 kg | Weight g |
2,5 | 40,0 | 35,0 | 3,50 | 7,50 | 7,0 | 300 | 60 | 5 | |
3,0 | 45,5 | 39,5 | 4,25 | 8,75 | 8,5 | 500 | 100 | 8 | |
3,5 | 52,5 | 45,5 | 5,00 | 10,25 | 10,0 | 650 | 130 | 12 | |
4,0 | 61,0 | 53,0 | 5,75 | 12,00 | 11,5 | 850 | 170 | 18 | |
5,0 | 70,5 | 60,5 | 6,50 | 13,50 | 13,0 | 1350 | 270 | 30 | |
6,0 | 81,5 | 69,5 | 7,25 | 15,50 | 14,5 | 2000 | 400 | 50 | |
7,0 | 91,0 | 77,0 | 8,00 | 17,00 | 16,0 | 2750 | 550 | 73 | |
8,0 | 100,0 | 84,0 | 8,75 | 18,50 | 17,5 | 3300 | 660 | 108 |
Short URL: http://lindemann.kg/s/1/QzC
All article numbers marked in blue can be ordered.
All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
