shackles PETERSEN - forged and tested in high resistent - Tested D-Shackles

Petersen-Stainless-shackleproduction

High resistent shackles

Manufactured from 17/4PH precipitation hardening martensitic stainless steel
Excellent for general lifting applications - high tensile properties while avoiding work hardening
Corrosion resistance similar to 18/8 grade steels
Factor of Safety 6:1
Available with 3 pin types - Standard Screw Collar Pin (A Type), Countersunk Head (B Type), Extended Screw Collar Pin (C Type)
Manufactured using the latest technology in electrical upset forging

Quality Features
Every shackle is proof tested to 2 x WLL and certified at our manufacturing facility in the North East of England. All shackles are manufactured in accordance with the Machine Directive 2006/42/EC Inspection certificate BS EN 10204 3.1b available on request. High quality finish and excellent polish

Form A
PG...TA

Form A<BR>PG...TAthumb

Form B
PG...TB

Form B<BR>PG...TBthumb

Form C
PG...TC

Form C<BR>PG...TCthumb

Form E
PG...TE

Form E<BR>PG...TEthumb
Form E<BR>PG...TEthumb
Form E<BR>PG...TEthumb
High resistant shackles by Petersen Stainless, forged and tested in high resistent steel 17-4PH
straight type special

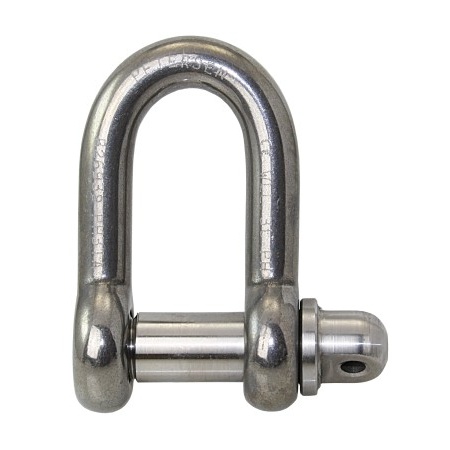

Form A: eye bolt
Form B: inside-hexagon bolt

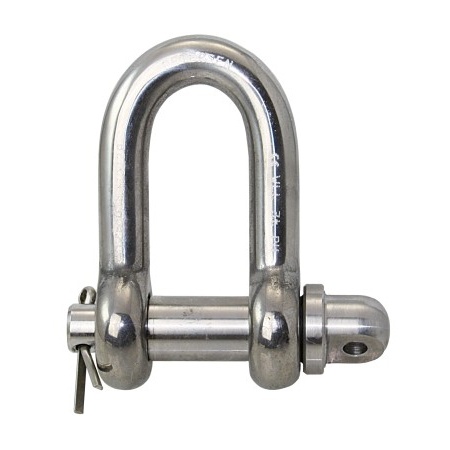

Form C: long bolt with pin hole

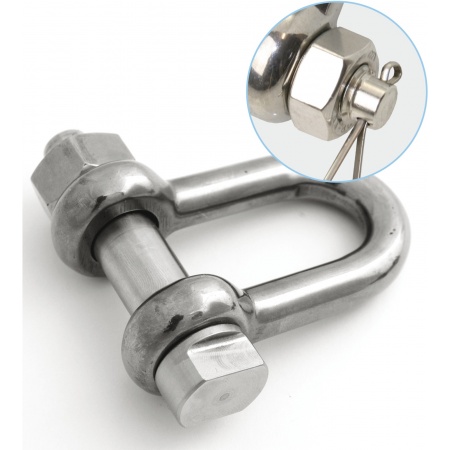

Form E: long bolt with nut and pin hole

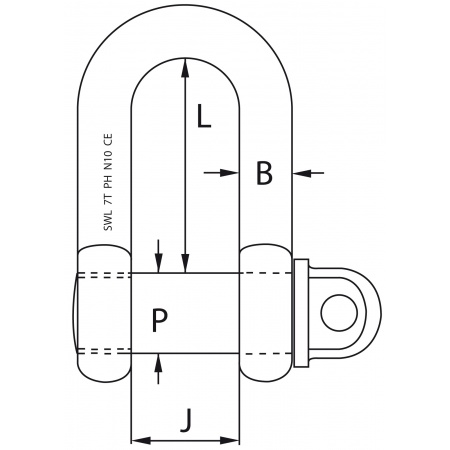

Art.-No.
Typ A		Art.-No.
Typ B		Art.-No.
Typ C		Art.-No.
Typ E		P
mm		B
mm		J
mm		L
mm		WWL
kg
9,58,016321000
12,710,020402000
16,012,725503000
19,016,032645000
22,219,038767000
25,422,244889000
28,625,45110211000
31,828,65711413000
34,931,86412815000
38,034,97615218000

You will find more high resistant shackles from WICHARD here


Short URL: http://lindemann.kg/s/1/VOl

All article numbers marked in blue can be ordered.

All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
