blocks ALLEN - Ezi-Ratchet block - ratchetblock - switchable ratchet

HA2140

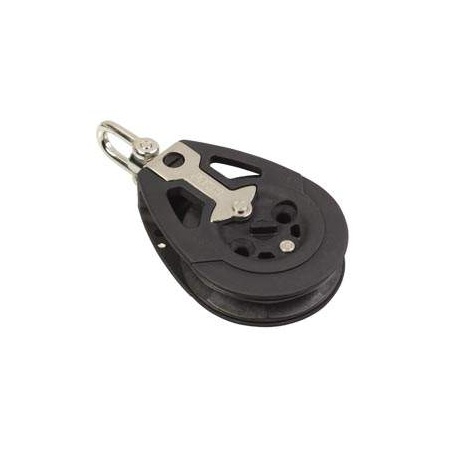

HA2150
HA2160

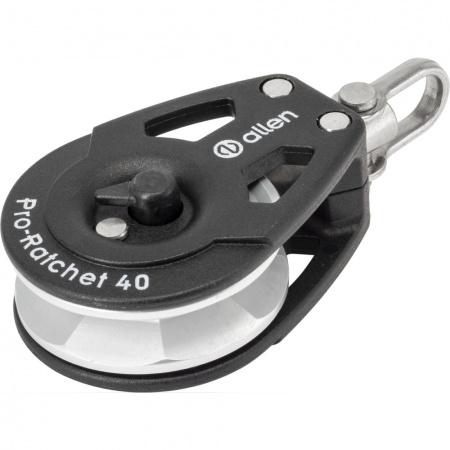

ALLEN PRO Ratchet

Designed for mainsheet and spinnaker applications the Pro-Ratchet is the lightest in its class. The fully composite sheave offers strength and durability without compromise of weight. Not limited by conventional machining angles the sheave is engineered to maximise grip when the ratchet is on, yet allow less grip when the load is reduced.

Art.-No.	type	length mm	weight g	BRL kg
HA2140 ALLEN Pro-Ratschenblock 40mm, Seil 6mm, Wirbelschäkel Price (EUR): € 62,00 per pc. on stock	PRO Ratchet 40 mm	78 mm	40,0 g	475 kg
HA2150 ALLEN Pro-Ratschenblock 50mm, Seil 10mm, Wirbelschäkel Price (EUR): € 96,00 per pc. on stock	PRO Ratchet 50 mm	95 mm	65,0 g	700 kg
HA2160 ALLEN Pro-Ratschenblock 60mm, Seil 12mm, Wirbelschäkel Price (EUR): € 110,10 per pc. on stock	PRO Ratchet 60 mm	110 mm	110,0 g	1000 kg

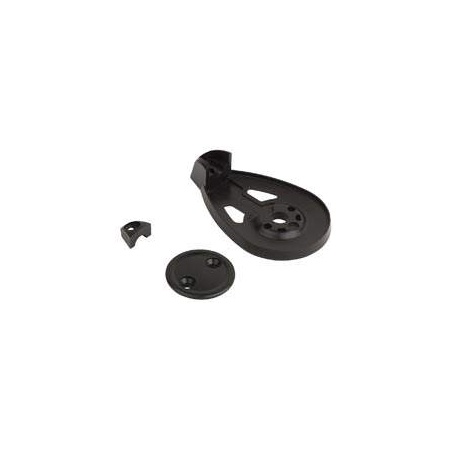

HA2166

Special adapter to convert the 60 mm PRO-Ratchet for horizontal mounting.
The PRO-Ratchet Block HA2160 is not included

Art.-No.	type	length mm	weight g	BRL kg
HA2166 ALLEN Liegeblock-Adapter für Blöcke HA2060, HA2160 Price (EUR): € 9,00 per pc. on stock	Cheek block adaptor for HA2160	107 mm	31,0 g

Specification		40 mm	50 mm	60 mm
sheaves	Ø	40 mm	50 mm	60 mm
	width	11 mm	11 mm	17 mm
	Material	Acetal	Acetal	Acetal
Cheeks		Glasfaserverstärktes Nylon mit Verstärkungen aus Edelstahl AISI 316
axle	Material	AISI 316	AISI 316	AISI 316
rope-Ø		6 mm	5 - 8 mm	5 - 10 mm
